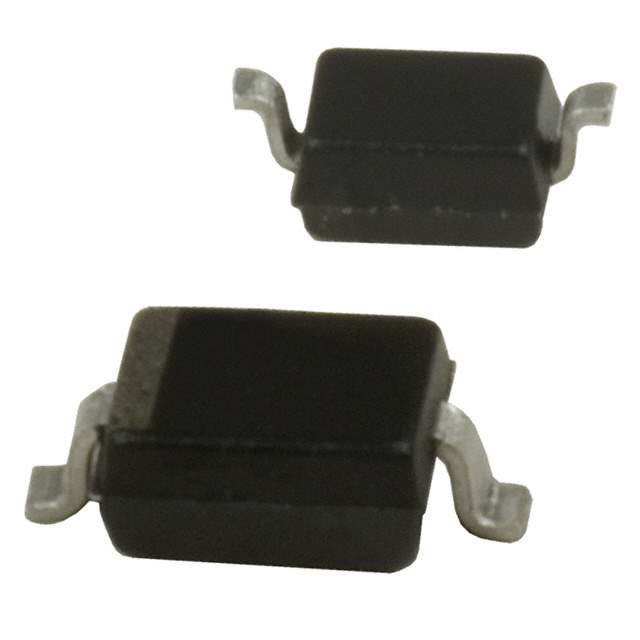

The BAS70ZFILM from STMicroelectronics is a high-performance Schottky barrier diode designed for applications requiring fast switching and low forward voltage drop. This diode is housed in a compact SOD-123 flat lead package, making it suitable for space-constrained applications while providing excellent thermal performance.
Key Features
- Low Forward Voltage Drop: The BAS70ZFILM boasts a low forward voltage drop, which enhances power efficiency by minimizing power loss during operation.
- Fast Switching Speed: With its quick switching capability, this diode is ideal for high-frequency applications, contributing to improved overall system speed and responsiveness.
- Surface-Mount Package: The SOD-123 package is designed for surface-mount technology, facilitating easy integration into various circuit designs and contributing to a reduction in PCB space requirements.
- High Reliability: STMicroelectronics is known for its commitment to quality, and the BAS70ZFILM is no exception. It is built to deliver consistent performance and reliability in a wide range of operating conditions.
Applications
The BAS70ZFILM can be used in a variety of applications, including:
- Switching power supply
- DC-DC converters
- Reverse polarity protection
- Charge and discharge circuits for capacitors
- High-frequency rectification in telecommunications equipment
Technical Specifications
Parameter
Value
Package
SOD-123
Repetitive Peak Reverse Voltage (V<sub>RRM)
70 V
Forward Continuous Current (I<sub>F)
70 mA
Forward Voltage Drop (V<sub>F)
1 V at I<sub>F = 70 mA
Operating Temperature Range
-55°C to +125°C
Whether you are designing a new system or upgrading an existing one, the BAS70ZFILM Schottky diode from STMicroelectronics offers the performance, efficiency, and reliability needed for today's demanding electronic applications.
