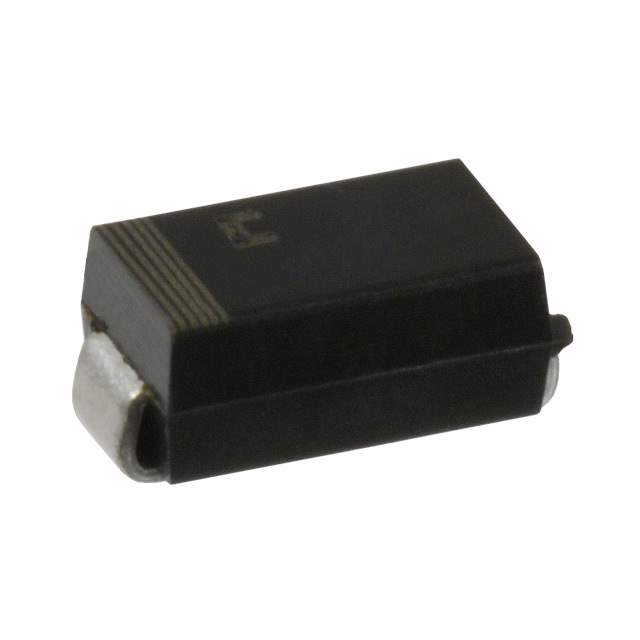

CDBA120LL-HF Real Image
Same model may have multiple batches, images only for reference.

CDBA120LL-HF

Part No CDBA120LL-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A DO214AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 330mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 20V
Capacitance @ Vr, F 130pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AC (SMA)
Operating Temperature - Junction -50°C to 100°C
Win Source Part Number 1028580-CDBA120LL-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDBA120LL-HF CAD Model

Description

The Comchip Technology CDBA120LL-HF Schottky Diode is an active product with a current rating of 1A (DC) and a voltage rating of 20V.

  • Current Rating: 1A (DC)
  • Voltage Rating: 20V
  • Forward Voltage: 330mV @ 1A
  • Reverse Leakage Current: 1mA @ 20V
  • Package: DO-214AC (SMA)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -50°C to 100°C
  • Recovery Speed: 200mA (Io)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
