ADP480120W3 STMicroelectronics – Price, Stock & Datasheet

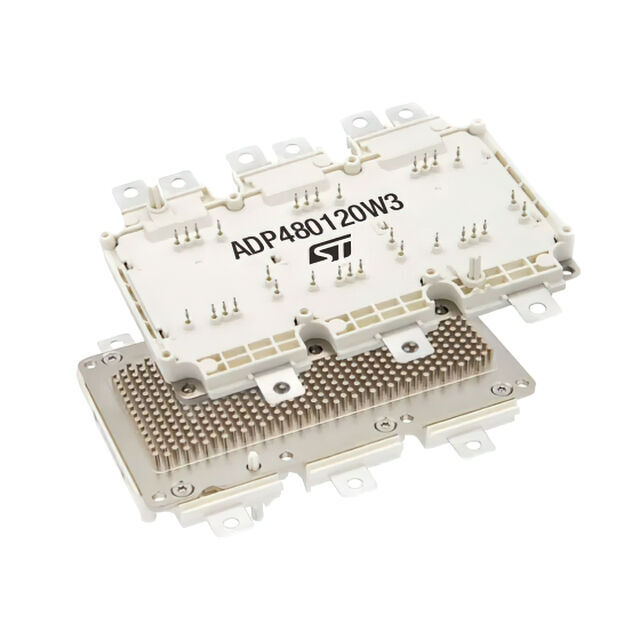

Same model may have multiple batches, images only for reference.

ADP480120W3

Part No ADP480120W3
Manufacturer STMicroelectronics
Catalog FETs - Arrays
Description MOSFET 6N-CH 1200V 488A ACEPACK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsFETs, MOSFETsFET, MOSFET Arrays
Manufacturer STMicroelectronics
Series ECOPACK?
Packaging Tray
Part Status Active
Technology Silicon Carbide (SiC)
Configuration 6 N-Channel
Drain to Source Voltage (Vdss) 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C 488A (Tj)
Rds On (Max) @ Id, Vgs 2.6mOhm @ 480A, 18V
Vgs(th) (Max) @ Id 4.4V @ 50mA
Gate Charge (Qg) (Max) @ Vgs 1258nC @ 18V
Input Capacitance (Ciss) (Max) @ Vds 37420pF @ 800V
Power - Max 869W (Tj)
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package ACEPACK
Ultra Librarian 3D Model Ultra Librarian ADP480120W3 CAD Model
