Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr STMicroelectronics
Series 1.5KE, TRANSIL™
Package Tape & Reel
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 70.1V
Voltage - Breakdown (Min) 77.9V
Voltage - Clamping (Max) @ Ipp 146V
Current - Peak Pulse (10/1000µs) 69A (8/20µs)
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 1350pF @ 1MHz
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Base Product Number 1.5KE82
Standard Package 1,900 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 853494-1.5KE82ARL
Ultra Librarian 3D Model Ultra Librarian 1.5KE82ARL CAD Model

Description

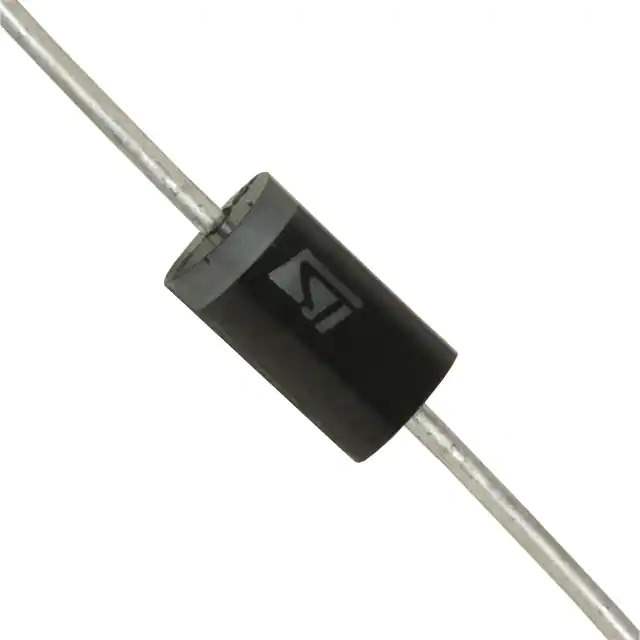

Product Overview: 1.5KE82ARL from STMicroelectronics

The 1.5KE82ARL is a robust transient voltage suppression (TVS) diode designed by STMicroelectronics to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This product is a part of the 1.5KE series, known for its high reliability and superior performance in clamping voltage spikes.

Key Features

  • Transient Protection: The 1.5KE82ARL is capable of handling surge events with its 1500W (1.5KW) peak pulse power capability with a 10/1000μs waveform.
  • Breakdown Voltage: It has a stand-off voltage of 82V, making it suitable for a range of applications that require this level of protection.
  • Unidirectional Protection: This device offers unidirectional protection, making it ideal for DC applications where the protection is required in one direction only.
  • Low Leakage Current: It maintains a low leakage current, ensuring minimal power loss during normal operation.
  • High Surge Capability: Its high surge capability ensures that it can withstand high energy spikes without performance degradation.
  • RoHS Compliant: The 1.5KE82ARL meets RoHS directives, making it an environmentally friendly choice for electronic components.

Applications

The 1.5KE82ARL is versatile and can be used in a wide range of applications including:

  • Industrial systems
  • Communication equipment
  • Power supply protection
  • Consumer electronics
  • Automotive systems
  • AC/DC applications

Quality and Reliability

STMicroelectronics is known for its commitment to quality, and the 1.5KE82ARL is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability. The device's robust construction allows it to operate in harsh environments and under extreme temperature conditions, making it a reliable choice for critical applications.

Conclusion

The 1.5KE82ARL TVS diode from STMicroelectronics is an essential component for protecting electronic systems from voltage transients. With its high surge capability, unidirectional protection, and compliance with environmental standards, it represents a smart choice for engineers looking to enhance the durability and longevity of their electronic designs.
