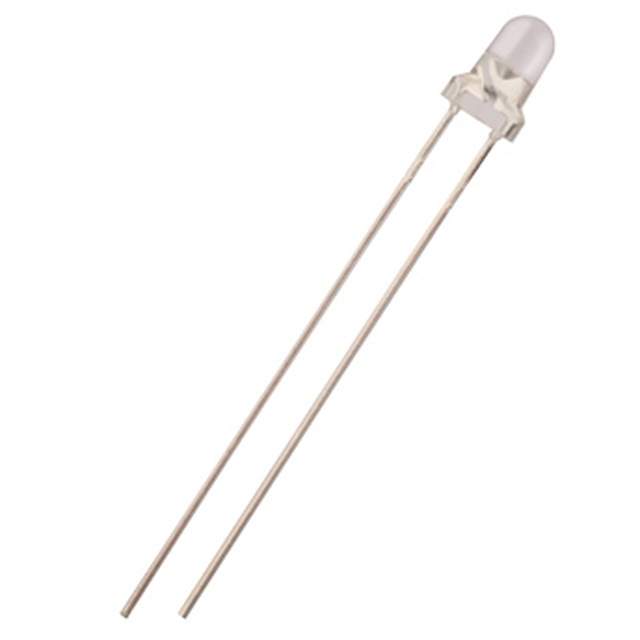

TDN3803X-2B0 Real Image
Same model may have multiple batches, images only for reference.

TDN3803X-2B0

Part No TDN3803X-2B0
Manufacturer Stanley Electric Co
Catalog Infrared, UV, Visible Emitters
Description LED LAMP 3.1MM WATER CLR TH / Infrared (IR) Emitter 870nm 1.5V 100mA 24mW/sr @ 50mA 36° Radial
Datasheet
TDN3803X-2B0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Stanley Electric Co
Package Bulk
Product Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 24mW/sr @ 50mA
Wavelength 870nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 36°
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1351871-TDN3803X-2B0
Ultra Librarian 3D Model Ultra Librarian TDN3803X-2B0 CAD Model

Description

The Stanley Electric Co TDN3803X-2B0 infrared LED emitter is a top view product with a wavelength of 870nm and a viewing angle of 36°.

  • View: Top
  • Wavelength: 870nm
  • Viewing Angle: 36°
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Temperature Range: -30°C ~ 85°C
  • Lifecycle Status: Obsolete
  • Voltage-Forward (Vf) (Typ): 1.5V
  • DC Forward Current (If) (Max): 100mA
  • Radiant Intensity (Ie) Minimum @ If: 24mW/sr @ 50mA
  • Commonly used in: electronic devices that require infrared LED emitters
