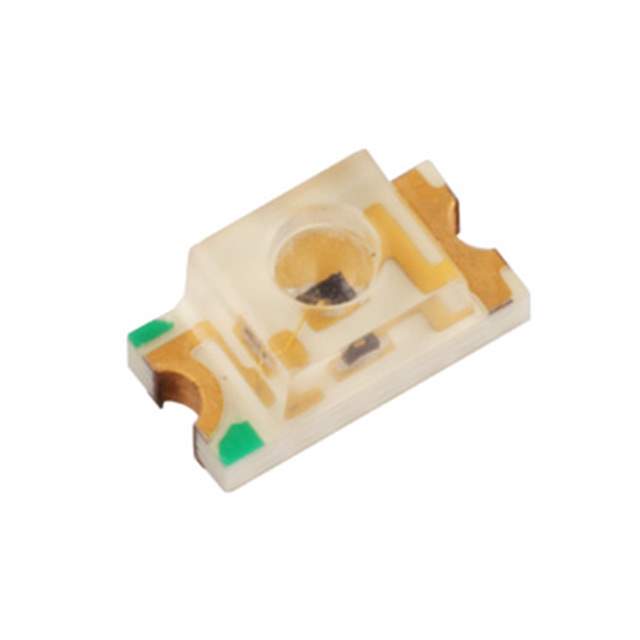

HDN1102W-TR Real Image
Same model may have multiple batches, images only for reference.

HDN1102W-TR

Part No HDN1102W-TR
Manufacturer Stanley Electric Co
Catalog Infrared, UV, Visible Emitters
Description LED LAMP FLAT SMD / Infrared (IR) Emitter 850nm 1.45V 50mA 2.2mW/sr @ 20mA 100° 2-SMD, No Lead
Datasheet
HDN1102W-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Stanley Electric Co
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 2.2mW/sr @ 20mA
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.45V
Viewing Angle 100°
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Base Product Number HDN1102
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 404-1329-2,HDN1102W-TR-ND,404-1329-1,404-1329-6
Standard Package 2,500
Win Source Part Number 1107592-HDN1102W-TR
Ultra Librarian 3D Model Ultra Librarian HDN1102W-TR CAD Model

Description

The Stanley Electric Co HDN1102W-TR is an infrared (IR) LED emitter with a 850nm wavelength and a viewing angle of 100 degrees.

  • Wavelength: 850nm
  • Viewing Angle: 100 degrees
  • Forward Voltage: 1.45V
  • Current Rating: 50mA
  • Radiant Intensity: 2.2mW/sr @ 20mA
  • Mounting: SMD (SMT)
  • Package: 2-SMD, no lead
  • Operating Temperature: -30°C to 85°C
  • ECCN: EAR99 compliant
