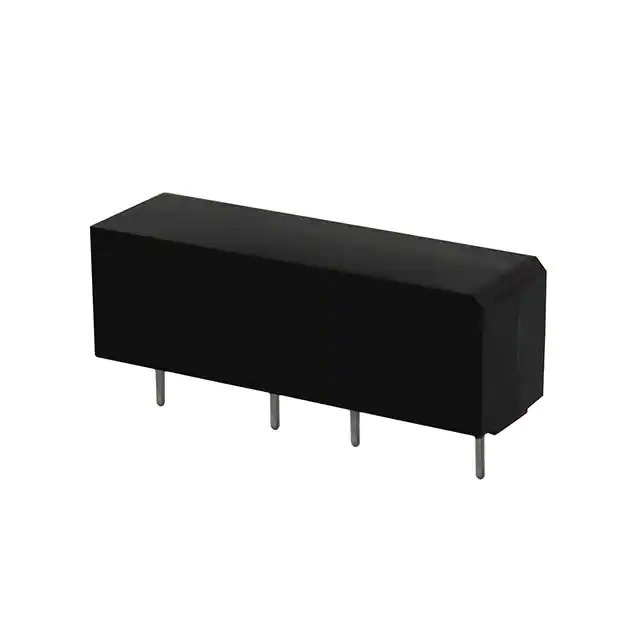

SHV05-1A85-78D3K Standex-Meder Electronics
Same model may have multiple batches, images only for reference.

SHV05-1A85-78D3K

Part No SHV05-1A85-78D3K
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 1A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Standex-Meder Electronics
Series SHV
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1 A
Switching Voltage 1000VAC, 1000VDC - Max
Coil Current 27.8 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Seal Rating -
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 1.1 ms
Release Time 0.1 ms
Temperature Range - Operating -40°C ~ 100°C
Contact Material -
Coil Resistance 180 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1373478-SHV05-1A85-78D3K
Ultra Librarian 3D Model Ultra Librarian SHV05-1A85-78D3K CAD Model

Description

The SHV05-1A85-78D3K is a reed relay manufactured by Standex-Meder Electronics.

  • Series: SHV
  • Features: Diode
  • Temperature Range: -40°C to 100°C
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 1 A
  • Switching Voltage: 1000VAC and 1000VDC
  • Coil Voltage: 5VDC
  • Coil Current: 27.8 mA
  • Must Operate Voltage: 3.75 VDC
  • Must Release Voltage: 0.5 VDC
  • Package: Through-Hole
  • REACH: Unaffected
