Same model may have multiple batches, images only for reference.

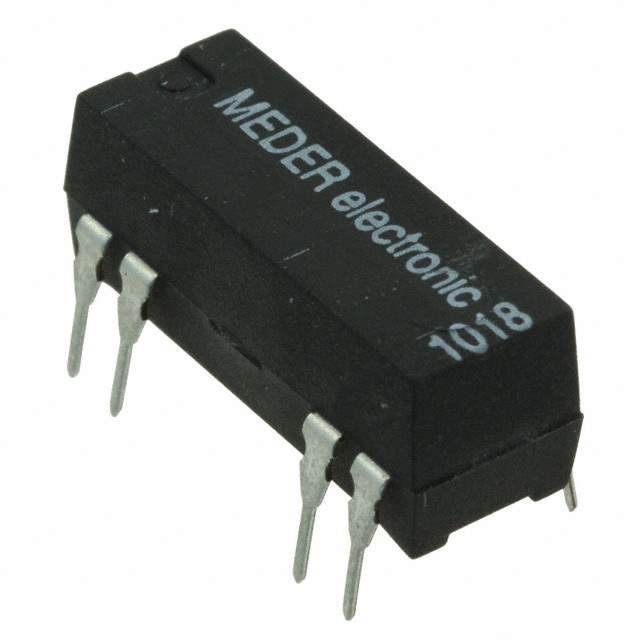

DIP05-1A72-12L Real Image
Same model may have multiple batches, images only for reference.

DIP05-1A72-12L

Part No DIP05-1A72-12L
Manufacturer Standex-Meder Electronics
Catalog Signal Relays, Up to 2 Amps
Description RELAY REED SPST 1A 5V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Reed Relays
Mfr Standex-Meder Electronics
Series DIP
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1 A
Switching Voltage 200VAC, 200VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.75 VDC
Operate Time 0.5 ms
Release Time 0.1 ms
Temperature Range - Operating -20°C ~ 70°C
Coil Resistance 500 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Other Names 3205100012
Standard Package 25
Win Source Part Number 1044360-DIP05-1A72-12L
Ultra Librarian 3D Model Ultra Librarian DIP05-1A72-12L CAD Model

Description

The DIP05-1A72-12L is a reed relay from Standex-Meder Electronics.

  • Contact Form: Single-pole, single-throw (SPST)
  • Coil Resistance: 500Ω
  • Coil Voltage: 5VDC
  • Coil Current: 10mA
  • Switching Voltage: 200VAC and 200VDC
  • Contact Rating: 1A
  • Operate Time: 0.5ms
  • Release Time: 0.1ms
  • Mounting Type: Through-hole
  • Operating Temperature Range: -20°C to 70°C

Overall, the DIP05-1A72-12L is a reliable and efficient reed relay for various applications.
