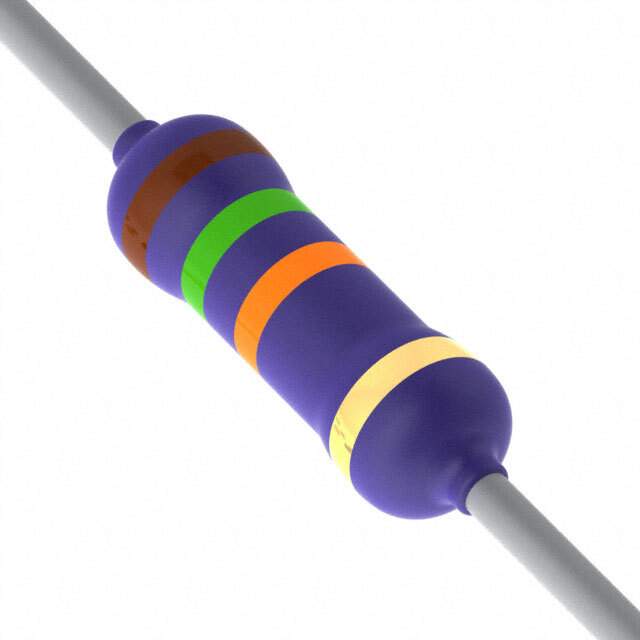

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 10 Weeks
Features 15 kOhms ±5% 5W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Manufacturer Stackpole Electronics Inc.
Series RSMF
Package Reel - TR
Operating Temperature Range -55°C ~ 235°C
Package Axial
Case / Package Axial
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Part Number RSMF 5 15K 5% R, RSMF515K5%R, RSMF515K5%R-ND, RSMF515KJR, RSMF515KJR-ND
Quantity per package 1000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 892426-RSMF5JT15K0
Ultra Librarian 3D Model Ultra Librarian RSMF5JT15K0 CAD Model

Description

The Stackpole Electronics Inc. RSMF series resistor is a through-hole axial flame-proof resistor that can operate in a temperature range of -55°C to 235°C.

  • Resistance: 15 kOhms
  • Tolerance: ±5%
  • Power Rating: 5W
  • Material: Safety metal oxide film
  • Packaging: Reel of 1000 pieces
  • Commonly Used In: Various electronic applications, including power supplies, voltage regulators, and amplifiers
