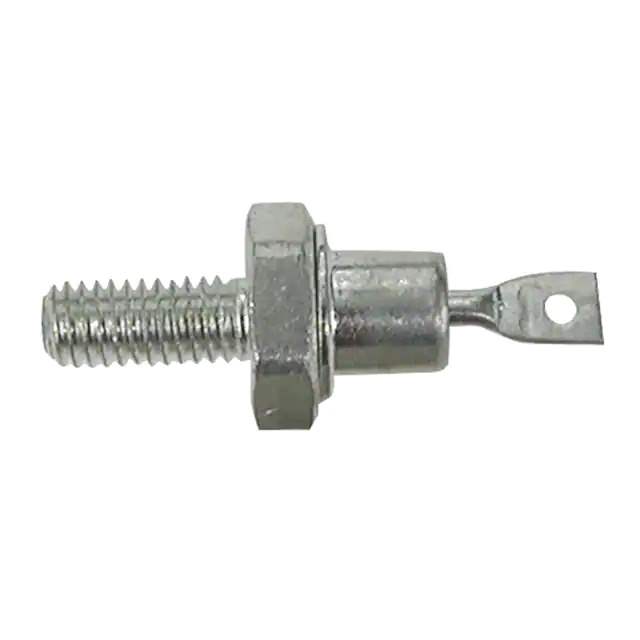

BZY93C7V5 Real Image
Same model may have multiple batches, images only for reference.

BZY93C7V5

Part No BZY93C7V5
Manufacturer Solid State Inc.
Catalog Diodes - Zener - Single
Description DO4 20 WATT ZENER DIODES
Datasheet
BZY93C7V5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Solid State Inc.
Series BZY93
Package Box
Product Status Active
Voltage - Zener (Nom) (Vz) 7.5 V
Tolerance ±6%
Power - Max 20 W
Impedance (Max) (Zzt) 0.3 Ohms
Current - Reverse Leakage @ Vr 100 µA @ 2 V
Temperature Range - Operating 175°C (TJ)
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847130-BZY93C7V5
Ultra Librarian 3D Model Ultra Librarian BZY93C7V5 CAD Model

Description

The BZY93 series single zener diode is a high-power diode with a voltage rating of 7.5V and a power rating of 20W.

  • Voltage - Zener (Vz) (Nom): 7.5V
  • Power - Max: 20W
  • Current - Reverse Leakage @ Vr: 100μA @ 2V
  • Impedance (Max) (Zzt): 0.3 Ohms
  • Mounting Type: Stud Mount
  • Package / Case: DO-203AA, DO-4
  • Operating Temperature - Max: 175°C
