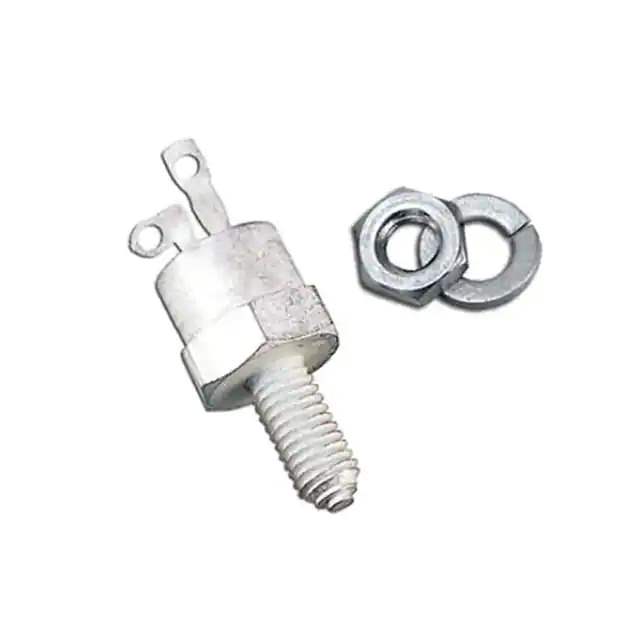

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Solid State Inc.
Package Box
Product Status Active
Voltage - Off State 50 V
Voltage - Gate Trigger (Vgt) (Max) 10 V
Current - Gate Trigger (Igt) (Max) 2 A
Current - On State (It (AV)) (Max) 4.7 A
Current - On State (It (RMS)) (Max) 7.4 A
Current - Hold (Ih) (Max) 8 mA
Current - Off State (Max) 9 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 60A
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C
Mounting Type Stud Mount
Package / Case TO-208AB, TO-64-3, Stud
Supplier Device Package TO-64
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 540948-2N1771
Ultra Librarian 3D Model Ultra Librarian 2N1771 CAD Model

Description

The 540948-2N1771 is a thyristor with a standard recovery SCR type.

  • Type: Thyristor, Standard Recovery SCR
  • Category: Discrete Semiconductor Products, Thyristors - SCRs
  • Package: Box, 10 Pieces (Standard)
  • Maximum Current Hold (Ih): 8 mA
  • Off-State Voltage: 50 V
  • Gate Trigger Voltage (Vgt): 10 V (Maximum)
  • Gate Trigger Current (Igt): 2 A (Maximum)
  • Maximum On-State Current (It (AV)): 4.7 A
  • Maximum On-State RMS Current (It (RMS)): 7.4 A
  • Maximum Off-State Current: 9 mA
  • Non-Repetitive Surge Current (50, 60Hz): 60A
  • Mounting Type: Stud Mount
  • Package: TO-208AB, TO-64-3, Stud
  • Temperature Range: -65°C to 125°C
  • Manufacturer: Solid State Inc.
  • Product Status: Active
