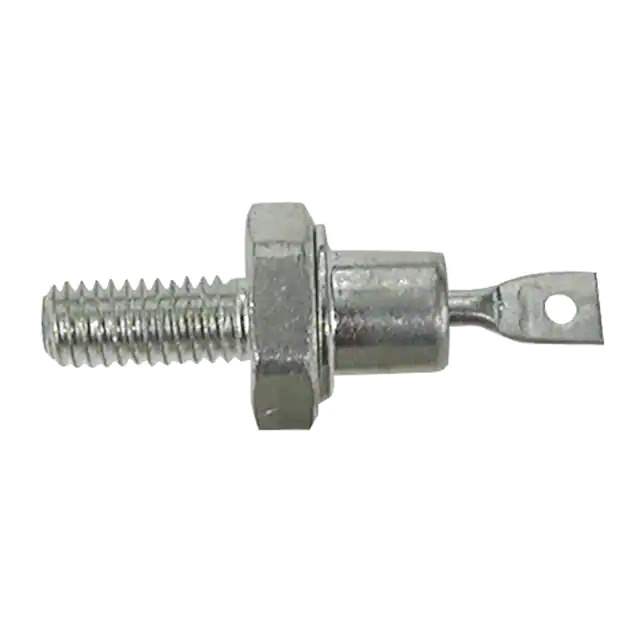

16F80 Real Image
Same model may have multiple batches, images only for reference.

16F80

Part No 16F80
Manufacturer Solid State Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 16A DO4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 16A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 16 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 736075-16F80
Ultra Librarian 3D Model Ultra Librarian 16F80 CAD Model

Description

The 736075-16F80 is a single rectifier diode.

  • Reverse Voltage: 800V
  • Average Rectified Current: 16A
  • Forward Voltage Drop: 1.2V @ 16A
  • Reverse Leakage Current: 10µA @ 800V
  • Package: DO-203AA, DO-4
  • Mounting: Stud mountable
  • Operating Temperature Range: -65°C to 150°C
  • Manufacturer: Solid State Inc.
  • Applications: power supply circuits, rectification, and other electronic systems
