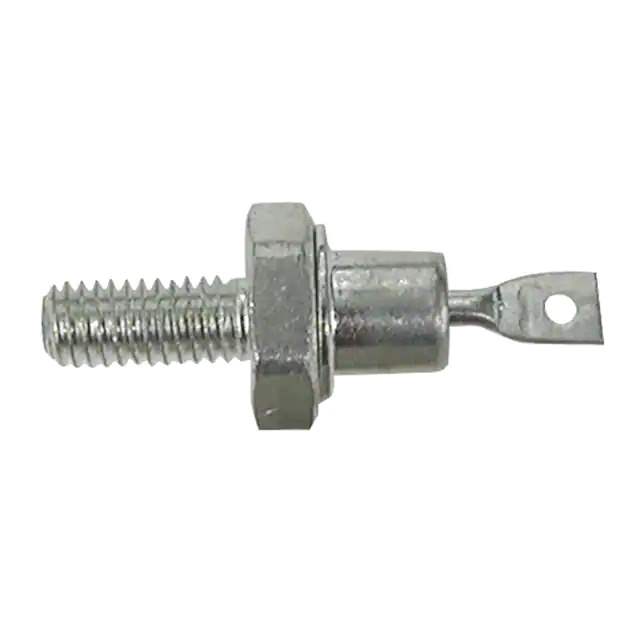

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 25 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 540652-25F60
Ultra Librarian 3D Model Ultra Librarian 25F60 CAD Model

Description

The 540652-25F60 is a single rectifier diode from the standard recovery diodes series. It is designed for use in various applications and offers reliable performance. This diode comes in a bulk package, with a standard package including 10 pieces. It has a speed of standard recovery (>500ns, >200mA) and a voltage DC reverse (Vr) maximum of 600 V. The average rectified current (Io) is 25A, and the forward voltage (Vf) is maximum 1.2 V at 25 A. The reverse leakage current (Vr) is 10 μA at 600 V. This diode is suitable for stud mounting and comes in a DO-203AA package. The temperature range for operating is -65°C to 150°C. The 540652-25F60 is an active product from Solid State Inc.
