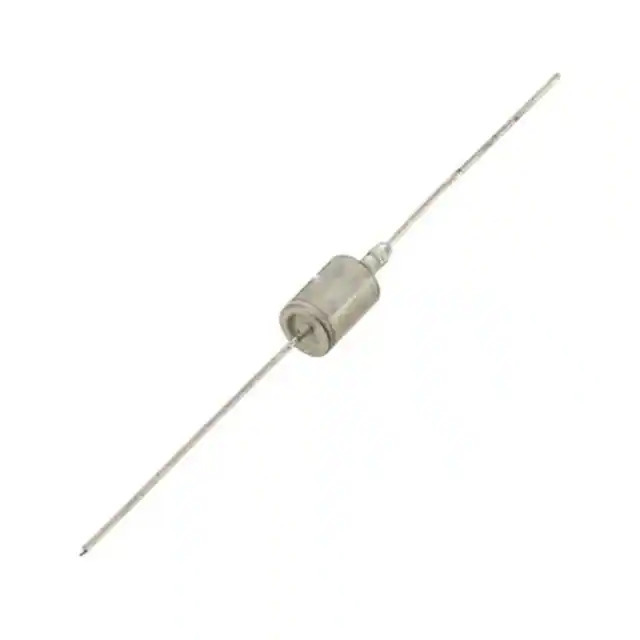

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Solid State Inc.
Series -
Package Bulk
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28V
Voltage - Breakdown (Min) 31.4V
Voltage - Clamping (Max) @ Ipp 45.7V
Current - Peak Pulse (10/1000µs) 33A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Mounting Type Through Hole
Package / Case DO-13
Supplier Device Package DO-13
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377376-1N6051A
Ultra Librarian 3D Model Ultra Librarian 1N6051A CAD Model

Description

The 1N6051A is a Zener diode transient voltage suppressor (TVS) manufactured by Solid State Inc.

  • Description: Zener diode transient voltage suppressor (TVS)
  • Manufacturer: Solid State Inc.
  • Diode Type: Bidirectional
  • Reverse Standoff Voltage: 28V
  • Breakdown Voltage: 31.4V
  • Clamping Voltage: 45.7V @ 33A (10/1000µs)
  • Power Rating: 1500W (1.5kW)
  • Application: General Purpose
  • Package: DO-13
  • HTSUS Code: 8541.10.0080
  • ECCN: EAR99
  • Mounting: Through Hole
