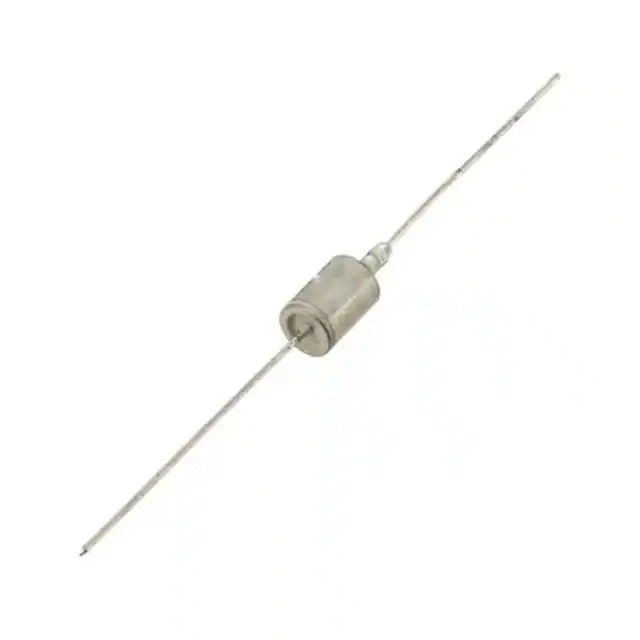

Same model may have multiple batches, images only for reference.
1N3028B Solid State Inc.
Same model may have multiple batches, images only for reference.

1N3028B

Part No 1N3028B
Manufacturer Solid State Inc.
Catalog Diodes - Zener - Single
Description 1 WATT ZENER DIODE D0-13
Datasheet
1N3028B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Solid State Inc.
Series 1N3028
Package Bulk
Product Status Active
Voltage - Zener (Nom) (Vz) 22 V
Tolerance ±5%
Power - Max 1 W
Impedance (Max) (Zzt) 23 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 16.7 V
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 200 mA
Temperature Range - Operating -65°C ~ 175°C
Mounting Type Through Hole
Package / Case DO-13
Supplier Device Package DO-13
Base Product Number 1N3028
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377360-1N3028B
Ultra Librarian 3D Model Ultra Librarian 1N3028B CAD Model

Description

The 1377360-1N3028B is a single zener diode used in discrete semiconductor applications. It is manufactured by Solid State Inc.

  • Temperature Range: -65°C to 175°C
  • Voltage Rating: 22V
  • Power Rating: 1W
  • Package: DO-13
  • Mounting: Through-Hole
  • Status: Active
