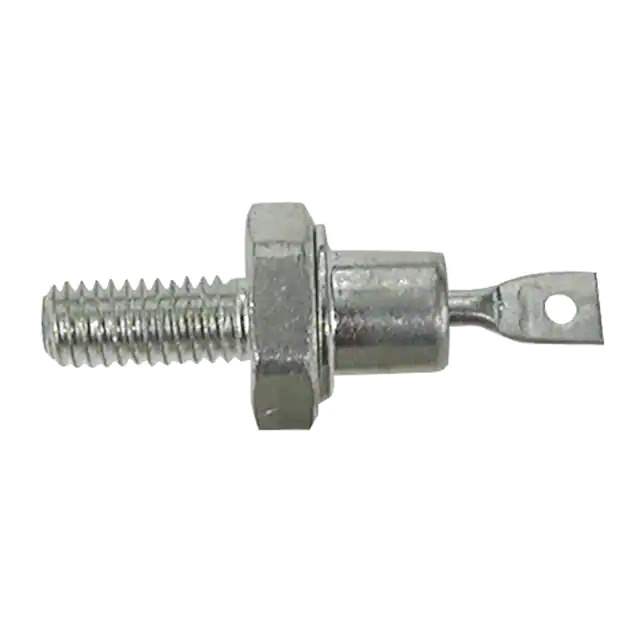

1N3005 Real Image
Same model may have multiple batches, images only for reference.

1N3005

Part No 1N3005
Manufacturer Solid State Inc.
Catalog Diodes - Zener - Single
Description DO4 10 WATT ZENER DIODES
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Solid State Inc.
Package Box
Product Status Active
Voltage - Zener (Nom) (Vz) 100 V
Tolerance ±20%
Power - Max 10 W
Impedance (Max) (Zzt) 40 Ohms
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 2 A
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Base Product Number 1N3005
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 538967-1N3005
Ultra Librarian 3D Model Ultra Librarian 1N3005 CAD Model

Description

The 538967-1N3005 is a single Zener diode that belongs to the Discrete Semiconductor Products category.

  • Maximum Power Rating: 10 W
  • Forward Voltage: 1.5 V @ 2 A
  • Zener Voltage: 100 V
  • Tolerance: ±20%
  • Impedance: 40 Ohms
  • Mounting Type: Stud mount
  • Operating Temperature Range: -65°C to 175°C
  • Manufacturer: Solid State Inc.
  • Product Status: Active
