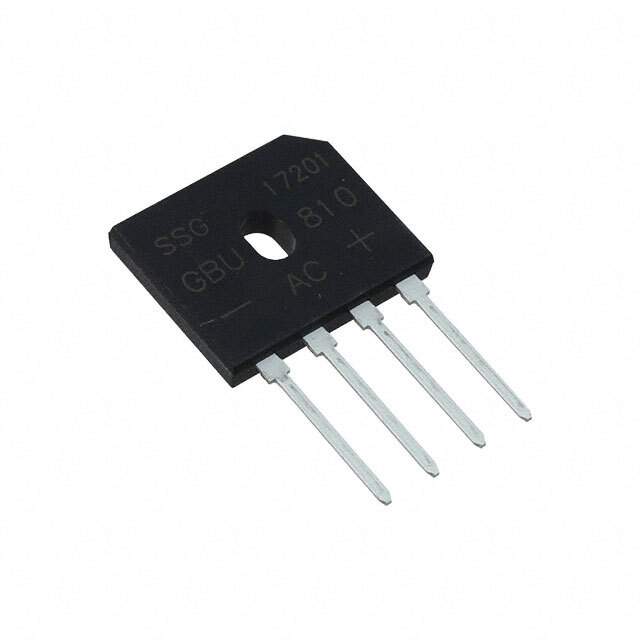

GBU810GTB Real Image
Same model may have multiple batches, images only for reference.

GBU810GTB

Part No GBU810GTB
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 8A GBU
Datasheet
GBU810GTB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 8A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-ESIP
Manufacturer Package GBU
Win Source Part Number 798623-GBU810GTB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GBU810GTB CAD Model

Description

The SMC Diode Solutions GBU810GTB is a single-phase standard diode with a peak reverse voltage of 1000V and an average rectified current of 8A.

  • Forward Voltage: 1.1V @ 8A
  • Reverse Leakage Current: 5μA @ 1000V
  • Package: 4-ESIP
  • Operating Temperature: -55 degrees Celsius to 150 degrees Celsius
  • Suitable for: Discrete semiconductor products
