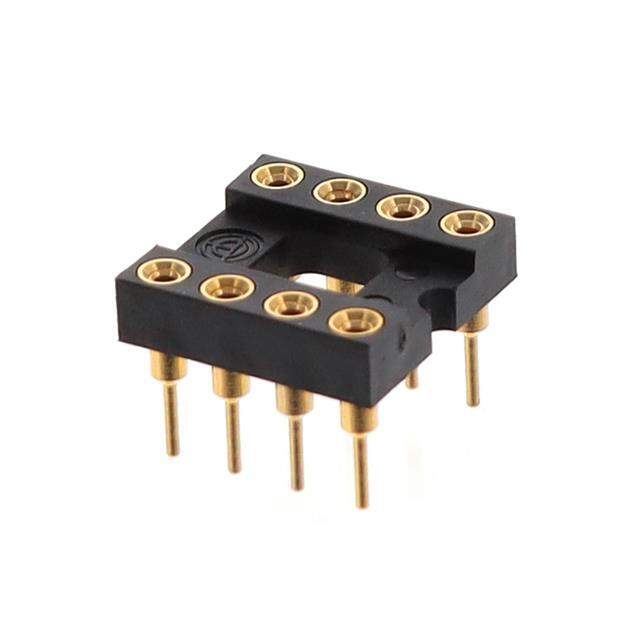

XR2A-0811-N Real Image
Same model may have multiple batches, images only for reference.

XR2A-0811-N

Part No XR2A-0811-N
Manufacturer Omron
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 8POS GOLD  /  8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Omron Electronics Inc-EMC Div
Series XR2
Package Bulk
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 8 (2 x 4)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Material - Mating Beryllium Copper
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post 10.0µin (0.25µm)
Contact Material - Post Beryllium Copper
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Termination Post Length 0.126" (3.20mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number XR2A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-XR2A-0811-N,XR2A0811N
Standard Package 60
Win Source Part Number 1178619-XR2A-0811-N
Ultra Librarian 3D Model Ultra Librarian XR2A-0811-N CAD Model

Description

The XR2A-0811-N is a connector interconnect with a Win Source part number of 1178619-XR2A-0811-N.

  • Series: XR2
  • Type: DIP
  • Row Spacing: 0.3-inch
  • Frame: Open Frame
  • Termination: Solder
  • Package: Bulk
  • Housing Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 60
  • Positions/Pins: 8 (2x4 grid)
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Contact Finish-Mating: Gold, 10.0μin (0.25μm)
  • Contact Material-Mating: Beryllium Copper
  • Pitch-Post: 0.100 inches (2.54mm)
  • Contact Finish-Post: Gold, 10.0μin (0.25μm)
  • Contact Material-Post: Beryllium Copper
  • Termination Post Length: 0.126 inches (3.20mm)
  • Contact Resistance: 20mOhm
  • Temperature Range: -55°C to 125°C
