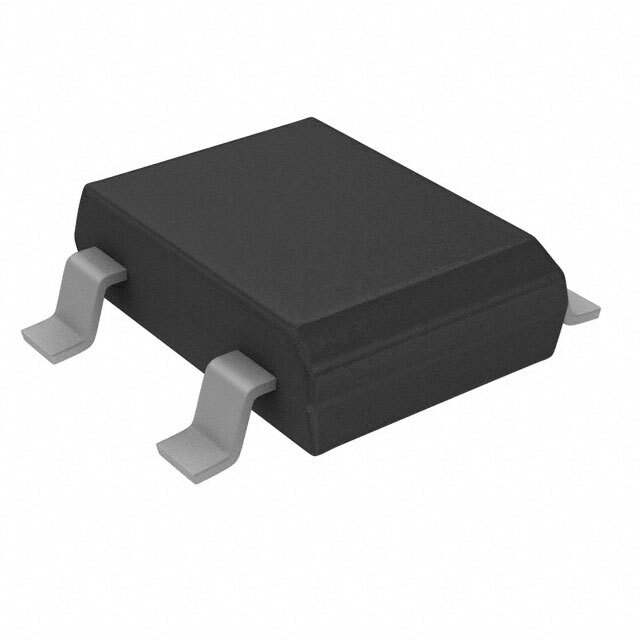

DB154S Real Image
Same model may have multiple batches, images only for reference.

DB154S

Part No DB154S
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 400V 1.5A DB-S
Datasheet
DB154S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 400 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DB-S
Base Product Number DB154
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 106343-DB154S
Ultra Librarian 3D Model Ultra Librarian DB154S CAD Model

Description

DB154S Bridge Rectifier

The DB154S is a high-quality bridge rectifier designed to deliver reliable AC to DC conversion, suitable for both commercial and industrial applications.

  • Applications: UPS systems, Electric vehicles, Power converters
  • Features: Low forward voltage drop, High temperature tolerance, Compact and durable packaging
  • Benefits: Improved energy efficiency, Reduced heat generation

Additional Details: The DB154S can manage currents up to 1.5A and comes with a peak reverse voltage capability of 400V, offering a robust solution for a range of electrical design projects.
