Same model may have multiple batches, images only for reference.

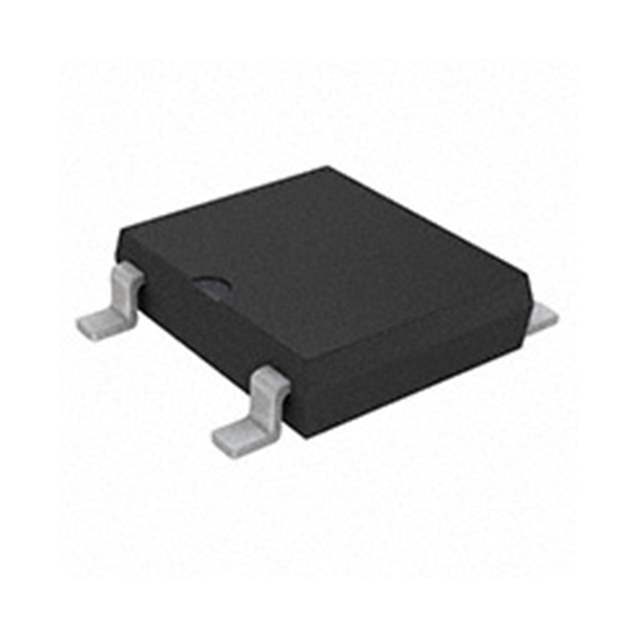

ABS210 Real Image
Same model may have multiple batches, images only for reference.

ABS210

Part No ABS210
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 2A ABS
Datasheet
ABS210 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number ABS210
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 552376-ABS210
Ultra Librarian 3D Model Ultra Librarian ABS210 CAD Model

Description

The 552376-ABS210 is a single phase bridge rectifier diode with a maximum peak reverse voltage of 1kV and an average rectified current of 2A.

  • Maximum Peak Reverse Voltage: 1kV
  • Average Rectified Current: 2A
  • Forward Voltage: 1V @ 2A
  • Reverse Leakage Current: 5μA @ 1000V
  • Temperature Range: -55°C to 150°C
  • Mounting: Surface mounted
  • Package: 4-SMD, Gull Wing
  • Manufacturer: SMC Diode Solutions
