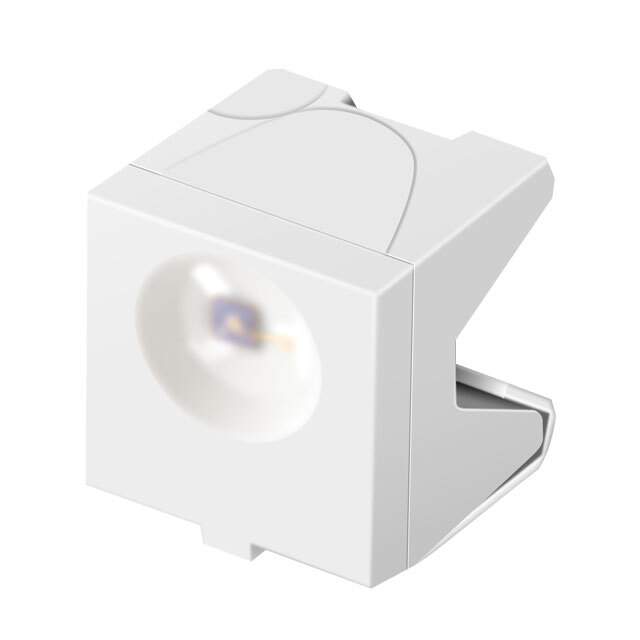

AA4040SESK Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 220mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 601nm
Wavelength - Peak 610nm
Package / Case 2-SMD, Boomerang
Supplier Device Package SMD
Dimension 4.00mm L x 3.60mm W
Height (Max) 4.00mm
Base Product Number AA4040
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1514-6,754-1514-2,754-1514-1
Standard Package 500
Win Source Part Number 1042377-AA4040SESK
Ultra Librarian 3D Model Ultra Librarian AA4040SESK CAD Model

Description

The Kingbright AA4040 LED indication component is a surface mount, right-angle package with a boomerang 2-SMD case.

  • Mounting: surface mount, right-angle
  • Case: boomerang 2-SMD
  • Viewing Angle: 120 degrees
  • Millicandela Rating: 220mcd
  • Lens Style: round with a flat top
  • Lens Size: 2.40mm diameter
  • Wavelength: 601nm
  • Peak Wavelength: 610nm
  • Forward Voltage: 2.1V
  • Test Current: 20mA
  • Packaging: tape and reel
  • Standard Package: 500
