Same model may have multiple batches, images only for reference.

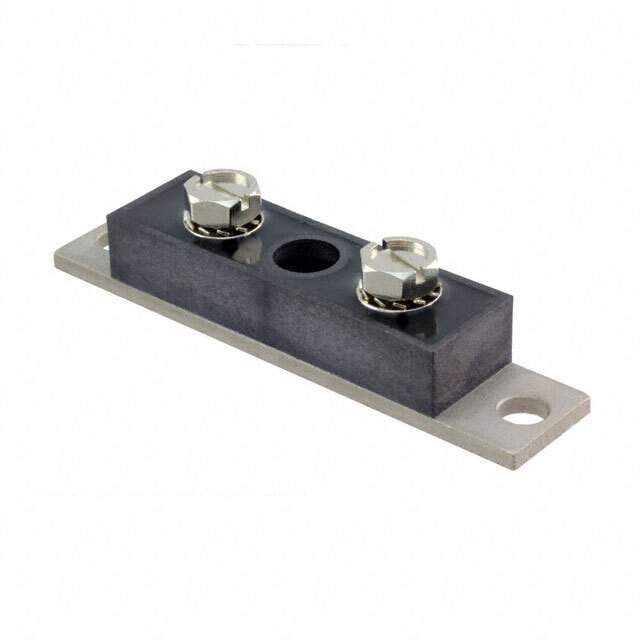

225CNQ015 Real Image
Same model may have multiple batches, images only for reference.

225CNQ015

Part No 225CNQ015
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 15V 110A PRM4
Datasheet
225CNQ015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 15V
Current - Average Rectified (Io) (per Diode) 110A
Voltage - Forward (Vf) (Maximum) @ If 380mV @ 110A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 40mA @ 15V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Chassis Mount
Package PRM4
Manufacturer Package PRM4 (Non-Isolated)
Win Source Part Number 761850-225CNQ015
Popularity Medium
Supply and Demand Status Limited
Family Name 225CNQ015
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 225CNQ015 CAD Model

Description

The SMC Diode Solutions Schottky Diode.

  • Current: 110A per diode
  • Package: PRM4
  • Mounting: Chassis
  • Voltage: 380mV @ 110A
  • Maximum Reverse Voltage: 15V
  • Diode Configuration: 1 pair common cathode
  • RoHS Compliance: Yes
  • Operating Temperature: -55 to 125°C
  • Popularity: Medium
  • Supply and Demand: Limited
