Same model may have multiple batches, images only for reference.

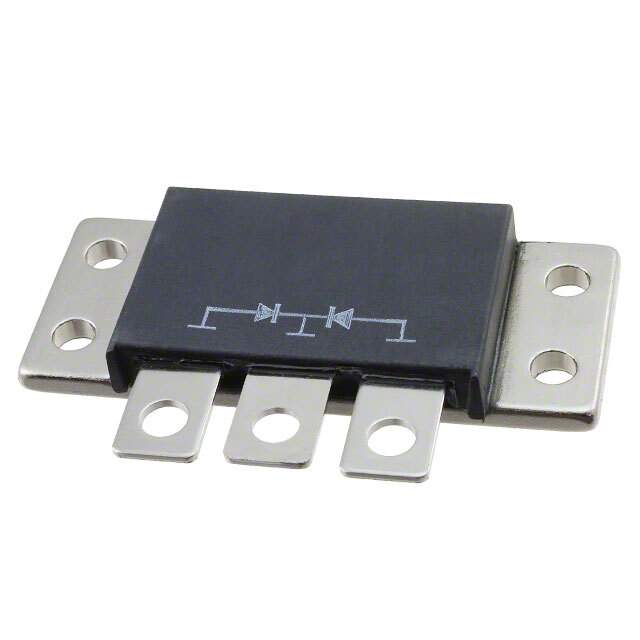

161CMQ045 Real Image
Same model may have multiple batches, images only for reference.

161CMQ045

Part No 161CMQ045
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 45V 80A TO249AA
Datasheet
161CMQ045 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer SMC Diode Solutions
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 80A
Voltage - Forward (Vf) (Max) @ If 880mV @ 80A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 45V
Operating Temperature - Junction -55°C to 175°C
Mounting Chassis Mount
Case / Package TO-249AA
Win Source Part Number 142590-161CMQ045
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 161CMQ045 CAD Model

Description

Product Name: 161CMQ045

The 161CMQ045 is perfect for high-demand applications where efficiency and reliability are critical. This component excels in delivering consistent performance over extended periods.

  • Applications:
    • Automotive Electronics
    • HVAC Systems
    • Telecommunications Equipment
  • Features and Benefits:
    • Superior thermal management
    • High reliability in diverse applications
    • Reduced electromagnetic interference
  • Additional Details:
    • High current capability
    • Compact footprint for space-saving designs
