Same model may have multiple batches, images only for reference.

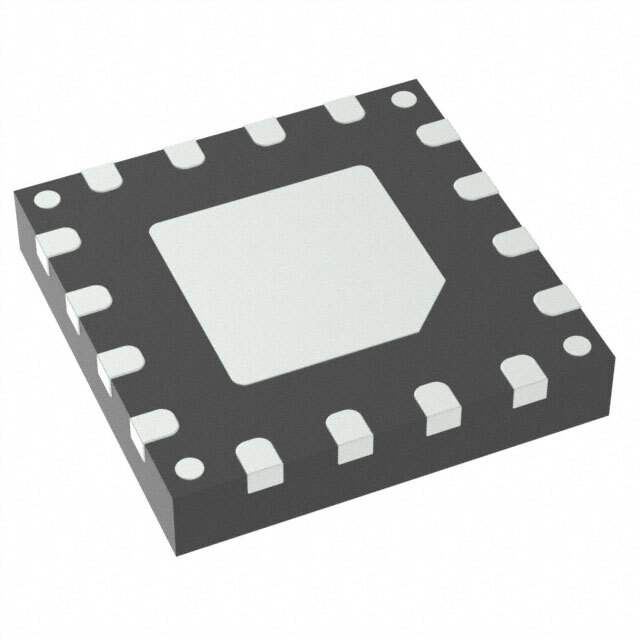

SKY85314-11 Real Image
Same model may have multiple batches, images only for reference.

SKY85314-11

Part No SKY85314-11
Manufacturer Skyworks Solutions Inc.
Catalog RF Front End (LNA + PA)
Description 2.4GHZ 64QAM PA+SW+LNA FEM IN 2.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Front End (LNA + PA)
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Active
RF Type 802.11b/g/n, WLAN
Frequency 902MHz ~ 931MHz
Features SPDT
Package / Case 16-XFQFN Exposed Pad
Supplier Device Package 16-QFN (2.5x2.5)
Base Product Number SKY85314
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN 5A991G
HTSUS 8542.39.0001
Win Source Part Number 667872-SKY85314-11
Ultra Librarian 3D Model Ultra Librarian SKY85314-11 CAD Model

Description

The SKY85314-11 is a SPDT RF front-end module designed for use in 802.11b/g/n WLAN applications.

  • Frequency Range: 902MHz to 931MHz
  • Package Type: 16-XFQFN Exposed Pad
  • Supplier Device Package: 16-QFN (2.5x2.5)
  • Status: Active product
  • ECCN: 5A991G
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8542.39.0001
