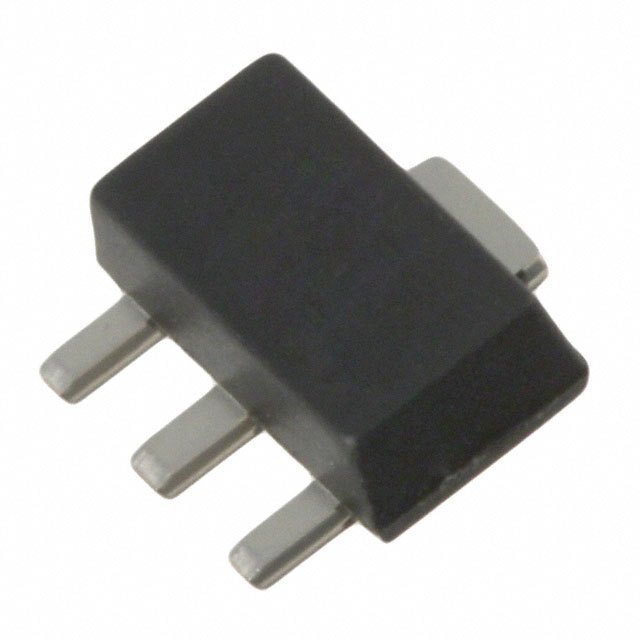

Same model may have multiple batches, images only for reference.

SKY65013-70LF

Name: SKY65013-70LF
Brand: Skyworks Solutions Inc.
SKU: 324805
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	SKY65013-70LF
Manufacturer	Skyworks Solutions Inc.
Catalog	RF Amplifiers
Description	IC INGAP AMP 7GHZ SOT-89 / RF Amp Single Cascadable Amp 7GHz 3.7V 4-Pin(3+Tab) SOT-89 T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	RF/IF and RFID
Manufacturer	Skyworks Solutions Inc.
Packaging	Reel - TR
Status	Active
Frequency	100MHz to 7GHz
P1dB	12.5dBm
Gain	12.5dB
Noise Figure	5.5dB
RF Type	WiMax, WLAN
Supply Voltage - Operating	3.5V
Operating Supply Current	120mA
Test Frequency	7GHz
Case / Package	SOT-89
Win Source Part Number	123114-SKY65013-70LF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Quantity per package	3k pcs
Family Name	SKY65013-70LF
Introduction Date	June 10, 2005
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian SKY65013-70LF CAD Model

Alternative Products

Description

The Skyworks Solutions Inc. 123114-SKY65013-70LF is an RF amplifier designed for WiMax and WLAN RF/IF and RFID applications.

Applications: WiMax and WLAN RF/IF and RFID
Test Frequency: 7GHz
Frequency Range: 100MHz to 7GHz
Gain: 12.5dB
Noise Figure: 5.5dB
P1dB: 12.5dBm
Operating Supply Current: 120mA @ 3.5V
Package Type: SOT-89
Status: active
Popularity: high
Quantity per Package: 3k pcs
