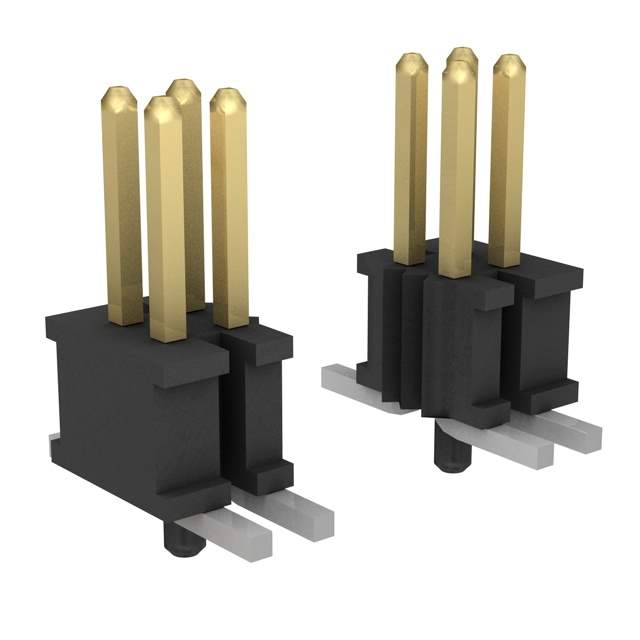

Same model may have multiple batches, images only for reference.

FTSH-107-03-L-DV-A-P

Name: FTSH-107-03-L-DV-A-P
Brand: Samtec Inc.
SKU: 1015349
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-107-03-L-DV-A-P
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 14POS 1.27MM / Connector Header Surface Mount 14 position 0.050" (1.27mm)
Datasheet	FTSH-107-03-L-DV-A-P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.065" (1.65mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-107
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	65
Win Source Part Number	1015349-FTSH-107-03-L-DV-A-P
Ultra Librarian 3D Model	Ultra Librarian FTSH-107-03-L-DV-A-P CAD Model

Alternative Products

Description

The FTSH series header connector with 14 positions is a male pin type connector that is cuttable and has a push-pull fastening type.

Contact Material: Phosphor Bronze
Termination: Solder
Pitch: 0.050” (1.27mm)
Mating Contact Finish: Gold
Mating Contact Finish Thickness: 10.0μin (0.25μm)
Shroud: Unshrouded
Insulation Color: Black
Contact Length for Mating: 0.065” (1.65mm)
Contact Shape: Square
Operating Temperature: -55℃ to 125℃
Current Rating: 3.4A per Contact
Series: FTSH-107
Application: Board-to-Board or Cable Applications
