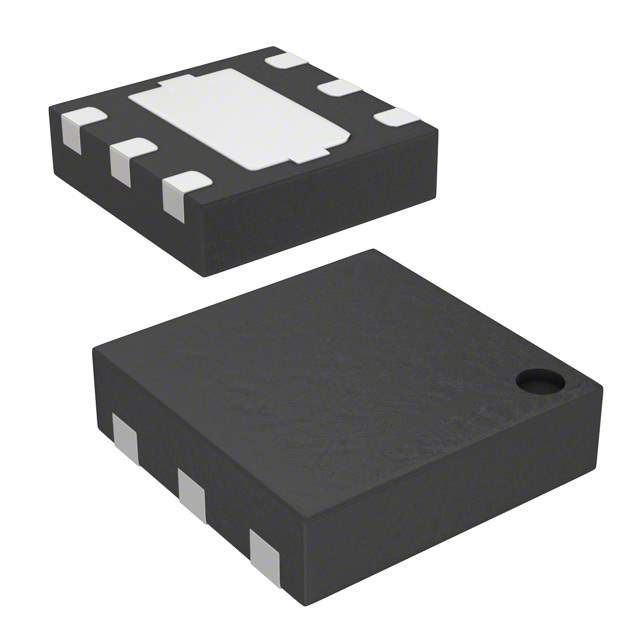

SKY13370-374LF Real Image
Same model may have multiple batches, images only for reference.

SKY13370-374LF

Part No SKY13370-374LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description RF Switch SPDT 500MHz to 6GHz 18dB Automotive 6-Pin QFN EP / IC SW SPDT 500MHZ-6GHZ 6-DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel
Part Status Active
Frequency - Lower 500MHz
Frequency - Upper 6GHz
Isolation @ Frequency 24dB @ 5.85GHz (typ)
Insertion Loss @ Frequency 1.15dB @ 5.85GHz
IIP3 55dBm (typ)
Topology Absorptive
Circuit SPDT
P1dB 39dBm (typ) IP1dB
Impedance 50 Ohm
Temperature Range - Operating -40°C ~ 85°C
RF Type 802.16 WiMAX
Case 6-XFDFN Exposed Pad
Supplier Device Package 6-DFN (1.5x1.5)
Win Source Part Number SKY13370-374LF-324771
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Family Name SKY13370
Introduction Date July 19, 2011
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SKY13370-374LF CAD Model

Description

The SKY13370-374LF-324771 is a SPDT absorptive RF switch from Skyworks Solutions Inc.

  • Impedance: 50 Ohm
  • Designed for: 802.16 WiMAX RF type
  • Frequency Range: 500MHz to 6GHz
  • Isolation: 24dB @ 5.85GHz (typ)
  • Insertion Loss: 1.15dB @ 5.85GHz
  • IIP3: 55dBm (typ)
  • P1dB: 39dBm (typ) IP1dB
  • Packaging: Reel
  • Supplier Device Package: 6-DFN (1.5x1.5)
  • Operating Temperature Range: -40°C to 85°C
  • Suitable for: RF/IF and RFID applications
  • Status: Active
  • Popularity: High
  • Supply and Demand Status: Sufficient
  • Estimated EOL Date: 2027
