Same model may have multiple batches, images only for reference.

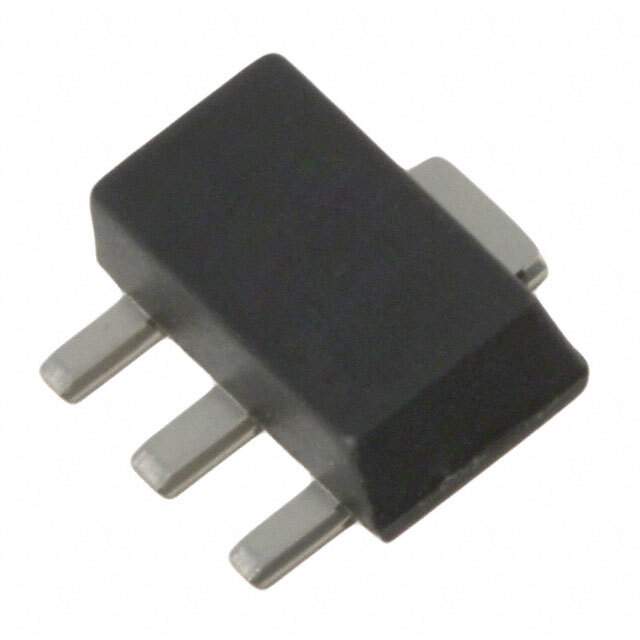

AGB3301RS24Q1 Real Image
Same model may have multiple batches, images only for reference.

AGB3301RS24Q1

Part No AGB3301RS24Q1
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description 50ohm High Linearity Low Noise Wideband Gain Block | IC AMP GAIN BLOCK SOT89
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Status Obsolete
Frequency 250MHz ~ 3GHz
P1dB 24dBm
Gain 15dB
Noise Figure 2.4dB
RF Type General Purpose
Supply Voltage (V) 5V ~ 9V
Supply Current 110mA
Test Frequency 900MHz
Manufacturer Package TO-243AA
Supplier Device Package SOT-89
Manufacturer Pack Quantity 1,000
MSL Level 2 (1 Year)
Win Source Part Number 1142917-AGB3301RS24Q1
Manufacturer Homepage www.anadigics.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AGB3301RS24Q1 CAD Model

Description

The Skyworks Solutions Inc. AGB3301RS24Q1 is a general-purpose RF amplifier designed for use in a wide range of applications.

  • Frequency Range: 250MHz to 3GHz
  • Gain: 15dB
  • Applications: RF/IF and RFID
  • Supply Current: 110mA
  • Noise Figure: 2.4dB
  • P1dB: 24dBm
  • Package: SOT-89
  • Status: Obsolete
  • Manufacturer's Homepage: www.anadigics.com
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 2 (1 year)
  • Supply Voltage Range: 5V to 9V
