Same model may have multiple batches, images only for reference.

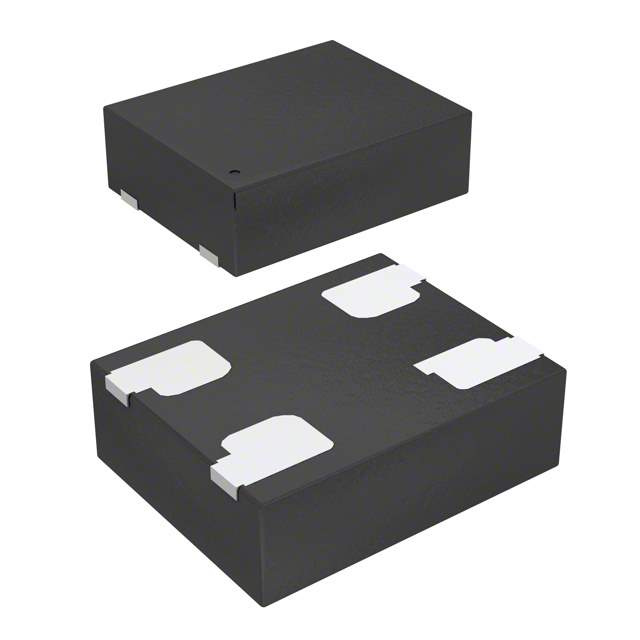

SIT8918AE-13-33E-75.000000D Real Image
Same model may have multiple batches, images only for reference.

SIT8918AE-13-33E-75.000000D

Part No SIT8918AE-13-33E-75.000000D
Manufacturer SiTIME
Catalog Oscillators
Description OSC MEMS 75.0000MHZ LVCMOS SMD
Datasheet
SIT8918AE-13-33E-75.000000D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer SiTIME
Packaging Reel - TR
Status Not For New Designs
Type MEMS (Silicon)
Frequency 75MHz
Purpose Enable/Disable
Output LVCMOS
Supply Voltage - Operating 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C to 105°C
Current - Supply (Max) 4.5mA
Mounting SMD (SMT)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Current - Supply (Disable) (Max) 4.1mA
Win Source Part Number 1096534-SIT8918AE-13-33E-75.000000D
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SIT8918AE-13-33E-75.000000D CAD Model

Description

The SiTIME SIT8918AE-13-33E-75.000000D is a surface-mount, MEMS (Silicon) component that is packaged in a reel-TR.

  • Height: 0.031 inches
  • Mounting Style: SMD (SMT)
  • Frequency: 75MHz
  • Output: LVCMOS
  • Frequency Stability: +/-50ppm
  • Current Supply (max): 4.5mA
  • Current Supply (disable) (max): 4.1mA
  • Category: Crystals, Oscillators, Resonators
  • Popularity: Medium
  • Quantity per Package: 3k pcs
  • Operating Temperature Range: -40 to 105 degrees Celsius
  • Dimension: 0.098 inches L x 0.079 inches W (2.50mm x 2.00mm)
  • Purpose: Enable/Disable
  • Operating Supply Voltage: 3.3V
