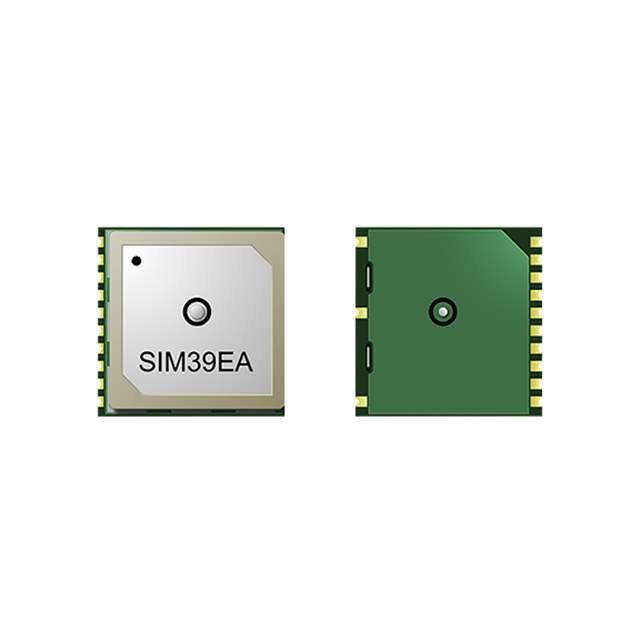

SIM39EA Real Image
Same model may have multiple batches, images only for reference.

SIM39EA

Part No SIM39EA
Manufacturer Simcom
Catalog RF Transceiver Modules
Description GPS ONLY WITH INTEGRATED ANTENNA / Navigation GPS Transceiver Module Integrated, Ceramic Patch Surface Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr SIMCom Wireless Solutions Limited
Package Tray
RF Family/Standard Navigation
Protocol GPS
Sensitivity -165dBm
Serial Interfaces UART
Antenna Type Integrated, Ceramic Patch
Voltage - Supply 2.8V ~ 4.3V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 13-SMD Module
MSL Level 3 (168 Hours)
Other Names S2-105R0-Z185Q,3781-SIM39EA,S2-105R0
Standard Package 200
Win Source Part Number 972302-SIM39EA
Ultra Librarian 3D Model Ultra Librarian SIM39EA CAD Model

Description

The SIMCom Wireless Solutions Limited SIM39EA is an RF transceiver module that is designed for GPS navigation.

  • Package: Tray
  • Standard Package Quantity: 200
  • Antenna Type: Integrated Ceramic Patch
  • Sensitivity: -165dBm
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package/Case: 13-SMD Module
