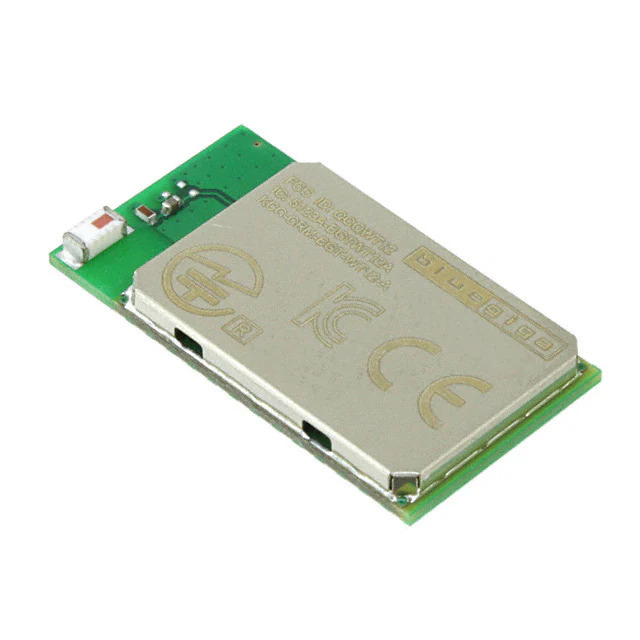

WT12-A-AI5 Silicon Labs
Same model may have multiple batches, images only for reference.

WT12-A-AI5

Part No WT12-A-AI5
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP SMD
Datasheet
WT12-A-AI5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Series -
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Bluetooth
Protocol Bluetooth v2.1 +EDR, Class 2
Modulation DQPSK, GFSK
Frequency 2.4GHz
Data Rate 3Mbps
Power - Output 3dBm
Sensitivity -86dBm
Serial Interfaces PIO, SPI, UART, USB
Antenna Type Integrated, Chip
Utilized IC / Part BlueCore4
Memory Size 8MB Flash
Voltage - Supply 3.1V ~ 3.6V
Current - Receiving 70mA
Current - Transmitting 70mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number WT12
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1380298-WT12-A-AI5
Ultra Librarian 3D Model Ultra Librarian WT12-A-AI5 CAD Model

Description

The WT12-A-AI5 is a Bluetooth RF Transceiver Module designed by Silicon Labs.

  • Frequency: 2.4GHz
  • IC: BlueCore4
  • Voltage Supply Range: 3.1V to 3.6V
  • Flash Memory: 8MB
  • Data Rate: 3Mbps
  • Bluetooth Protocol: v2.1 +EDR, Class 2
  • Power Output: 3dBm
  • Sensitivity: -86dBm
  • Serial Interfaces: PIO, SPI, UART, and USB
  • Mounting Type: Surface Mountable
  • Package: Tape & Reel
