C8051F530ADK

Part No C8051F530ADK
Manufacturer Silicon Labs
Catalog Evaluation Boards - Embedded - MCU, DSP
Description KIT DEV C8051F53XA, C8051F52XA / C8051F52xA/C8051F53xA Microcontroller Development Kit 0.1914MHz CPU Win 2000
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Silicon Labs
Board Type Evaluation Platform
Type MCU 8-Bit
Core Processor 8051
For Use With/Related Products C8051F52xA, C8051F53xA
Mounting Fixed

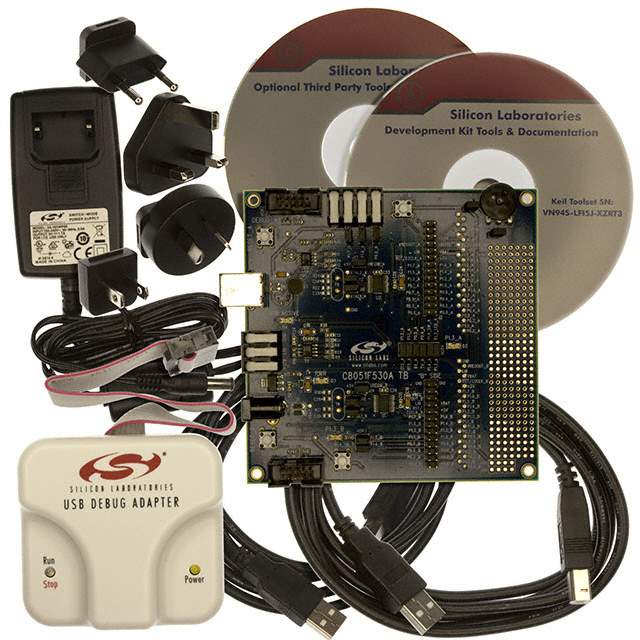

Contents Board(s), Cable(s), Power Supply, USB Debug Adapter Programmer
Win Source Part Number 771112-C8051F530ADK
Popularity Medium
Supply and Demand Status Limited
Family Name C8051F530
Introduction Date August 31, 2001
ECCN 3A991.a.2
Country of Origin United States of America
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian C8051F530ADK CAD Model

Description

The C8051F530ADK is an Analog Devices (formerly Silicon Labs) Development Kit. It is designed to evaluate and prototype applications using the C8051F530A microcontroller. This comprehensive kit provides developers with the necessary hardware and software tools to explore the features and capabilities of the microcontroller, enabling rapid development and testing of embedded systems.

Applications

  • Rapid prototyping of embedded systems
  • Evaluation of C8051F530A microcontroller
  • Development of custom firmware
  • Experimentation with ADC, DAC, and other peripherals
  • Educational purposes for learning embedded programming

Features

  • C8051F530A microcontroller with integrated peripherals
  • On-board debugger for easy programming and debugging
  • Headers for accessing all microcontroller pins
  • Example code and software libraries
  • USB interface for communication and power

Benefits

  • Accelerates development of embedded systems
  • Provides a convenient platform for evaluating the C8051F530A microcontroller
  • Reduces development time and costs
  • Simplifies debugging and troubleshooting
  • Enables rapid prototyping and experimentation

Additional Details

The C8051F530ADK typically includes the development board, USB cable, and software CD or download link. The C8051F530A microcontroller features a high-speed pipelined 8051-compatible CIP-51 core, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and various communication interfaces such as UART, SPI, and I2C. The kit is supported by Simplicity Studio, a comprehensive integrated development environment (IDE) provided by Silicon Labs/Analog Devices, which offers features like code editing, compilation, debugging, and flash programming.
