Same model may have multiple batches, images only for reference.

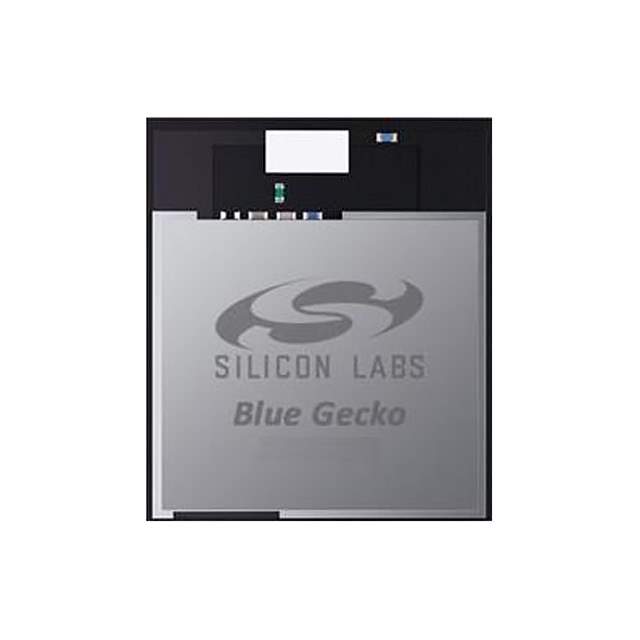

BGM13P22F512GA-V2 Real Image
Same model may have multiple batches, images only for reference.

BGM13P22F512GA-V2

Part No BGM13P22F512GA-V2
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH CHIP SMD / Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
BGM13P22F512GA-V2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Blue Gecko
Package Strip
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Modulation GFSK
Frequency 2.4GHz
Data Rate 2Mbps
Power - Output 8dBm
Sensitivity -94.8dBm
Serial Interfaces GPIO, I²C, I²S, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part EFR32BG
Memory Size 512kB Flash, 64kB RAM
Voltage - Supply 1.8V ~ 3.8V
Current - Receiving 9.9mA
Current - Transmitting 9.5mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number BGM13
Standard Package 100
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1351212-BGM13P22F512GA-V2
Ultra Librarian 3D Model Ultra Librarian BGM13P22F512GA-V2 CAD Model

Description

The 1351212-BGM13P22F512GA-V2 is a Bluetooth v5.0 RF transceiver module from Silicon Labs.

  • Mounting Type: Surface Mount
  • Package: Module
  • Frequency: 2.4 GHz
  • Protocol: Bluetooth v5.0
  • Data Rate: 2 Mbps
  • Memory: 512 kB Flash, 64 kB RAM
  • Antenna: Integrated, Chip
  • Power Output: 8 dBm
  • Sensitivity: -94.8 dBm
  • Receiving Current: 9.9 mA
  • Serial Interfaces: GPIO, I²C, I²S, SPI, UART
  • Applications: IoT, Home Automation, Smart Energy Management
