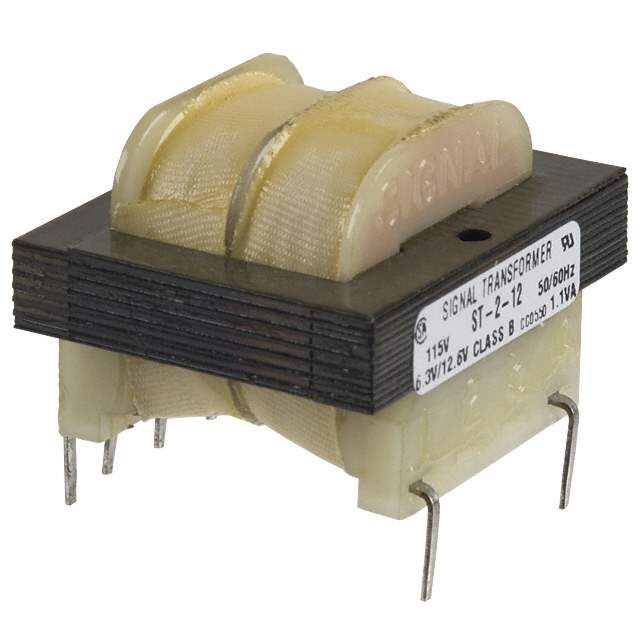

ST-2-24 Real Image
Same model may have multiple batches, images only for reference.

ST-2-24

Part No ST-2-24
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR LAMINATED 1.1VA TH /
Datasheet
ST-2-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Signal Transformer
Series ST
Package Box
Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) Parallel 12V, Series 24V
Current - Output (Max) Parallel 90mA, Series 45mA
Primary Winding(s) Single
Secondary Winding(s) Dual
Center Tap No
Power - Max 1.1VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 34.90mm L x 28.60mm W
Height - Seated (Max) 24.60mm
Voltage - Isolation 2500Vrms
Weight 0.17 lb (77.11 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 595-1176
Standard Package 100
Win Source Part Number 1149200-ST-2-24
Ultra Librarian 3D Model Ultra Librarian ST-2-24 CAD Model

Description

The Signal Transformer ST-2-24 is a power transformer that is designed to provide a maximum power of 1.1VA.

  • Maximum Power: 1.1VA
  • Voltage Isolation: 2500Vrms
  • Current Output: parallel 90mA and series 45mA
  • Voltage Secondary: parallel 12V and series 24V
