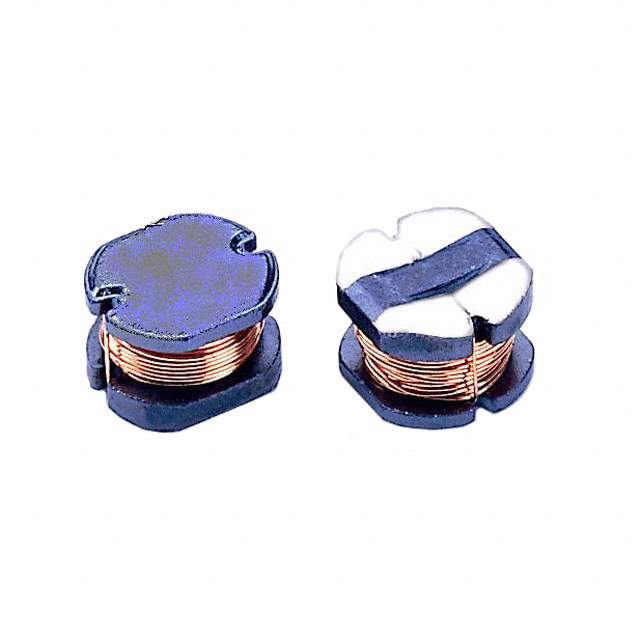

SC105-331 Real Image
Same model may have multiple batches, images only for reference.

SC105-331

Part No SC105-331
Manufacturer Signal Transformer
Catalog Fixed Inductors
Description FIXED IND 330UH 680MA 1.15OHM SM / 330 µH Unshielded Wirewound Inductor 680 mA 1.15Ohm Max Nonstandard
Datasheet
SC105-331 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Signal Transformer
Series SC105
Package Tape & Reel (TR)
Type Wirewound
Inductance 330 µH
Tolerance ±20%
Current Rating (Amps) 680 mA
Current - Saturation (Isat) 520mA
Shielding Unshielded
DC Resistance (DCR) 1.15Ohm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.406" L x 0.366" W (10.30mm x 9.30mm)
Height - Seated (Max) 0.224" (5.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 500
Win Source Part Number 1205094-SC105-331
Ultra Librarian 3D Model Ultra Librarian SC105-331 CAD Model

Description

The Signal Transformer SC105-331 is a wirewound inductor with an inductance of 330 μH and a tolerance of ±20%.

  • Inductance: 330 μH
  • Tolerance: ±20%
  • Type: Fixed inductors
  • Packaging: Tape and reel
  • Standard Package: 500
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: 680 mA
  • Inductance Frequency Test: 1 kHz
