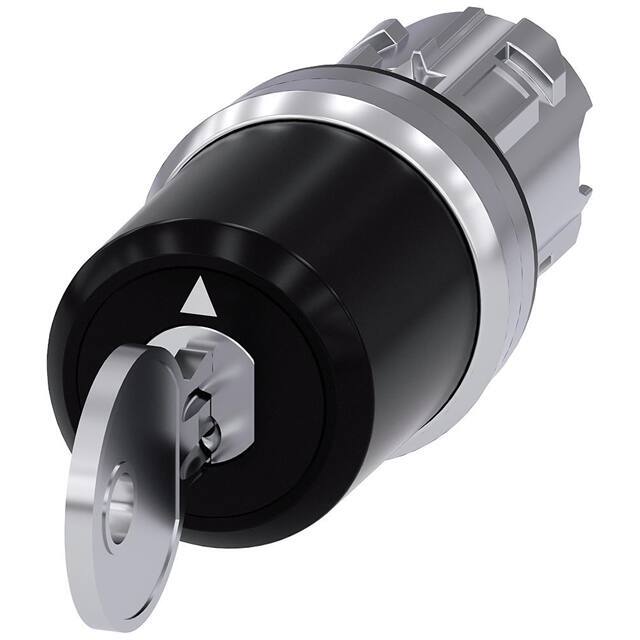

3SU10505BP010AA0 Siemens
Same model may have multiple batches, images only for reference.

3SU10505BP010AA0

Part No 3SU10505BP010AA0
Manufacturer Siemens
Catalog Configurable Switch Components - Body
Description KEY SW, 3POS,MOM/MTND,KEY REMOVA
Datasheet
3SU10505BP010AA0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Configurable Switch Components - Body
Mfr Siemens
Series 3SU1
Package Box
Product Status Active
Requires Contact Block(s)
Type Maintained, Momentary
Illumination Non-Illuminated
Actuator Type Keylock
(Select First, Then Apply Filters) Compatible Series Siemens, 22mm
Panel Cutout Dimensions 22.3mm (Round)
Base Product Number 3SU1050
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1049524-3SU10505BP010AA0
Ultra Librarian 3D Model Ultra Librarian 3SU10505BP010AA0 CAD Model

Description

The Siemens 3SU1 series keylock switch is a configurable switch component designed for various applications by Siemens.

  • Type: Maintained and Momentary
  • Illumination: Non-illuminated
  • Requirements: Contact block(s)
  • Compatibility: Siemens 22mm series
  • Panel Cutout Dimension: 22.3mm (Round)
  • Actuator Type: Keylock
  • Package: Box
  • Standard Package: 1 piece
  • Product Status: Active
