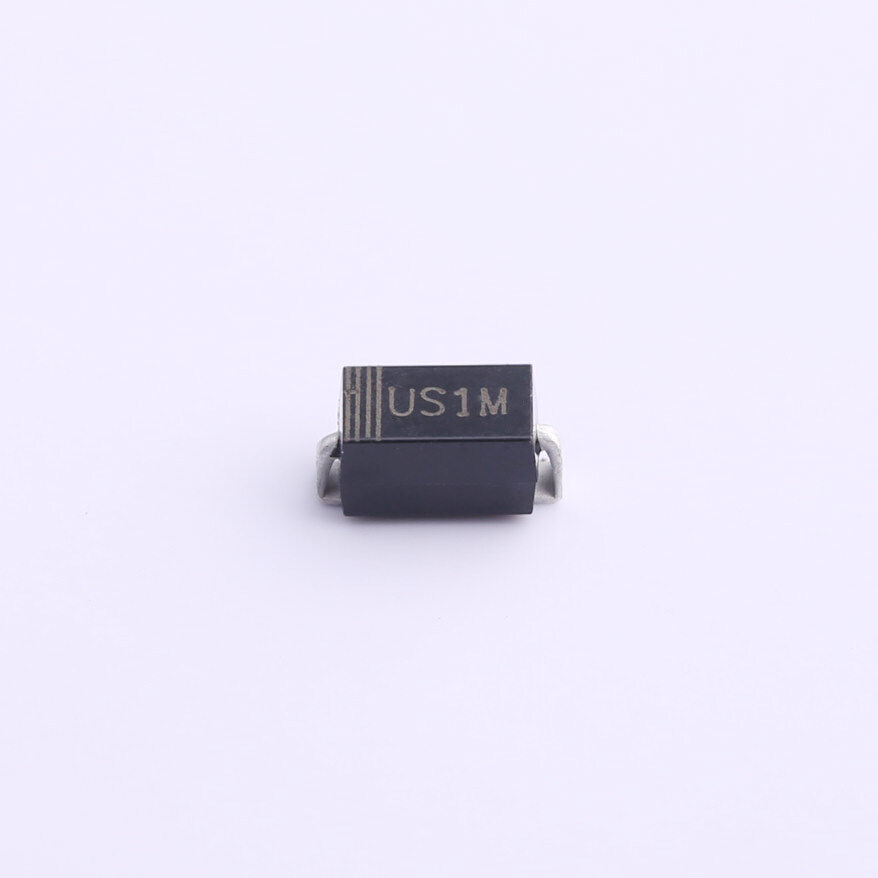

Same model may have multiple batches, images only for reference.
US1M ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

US1M

Part No US1M
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Diodes, Rectifiers - Single
Description 1.7V@1A 75ns Independent Type 1A 1kV SMA(DO-214AC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329786-US1M
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7V @ 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 5µA @ 1000V
Grade -
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -50°C ~ 150°C
Capacitance @ Vr, F 10pF @ 4V, 1MHz
Operating Temperature - Junction -55°C ~ 150°C
Package Tape & Reel (TR)
Product Status Obsolete
Supplier Device Package SMA
Operating Temperature - Junction -65°C ~ 150°C
Capacitance @ Vr, F 17pF @ 4V, 1MHz
Voltage - Forward (Vf) (Max) @ If 1.7V @ 2A
Package Cut Tape (CT)
Voltage - Forward (Vf) (Max) @ If 1.65V @ 1A
Ultra Librarian 3D Model Ultra Librarian US1M CAD Model
