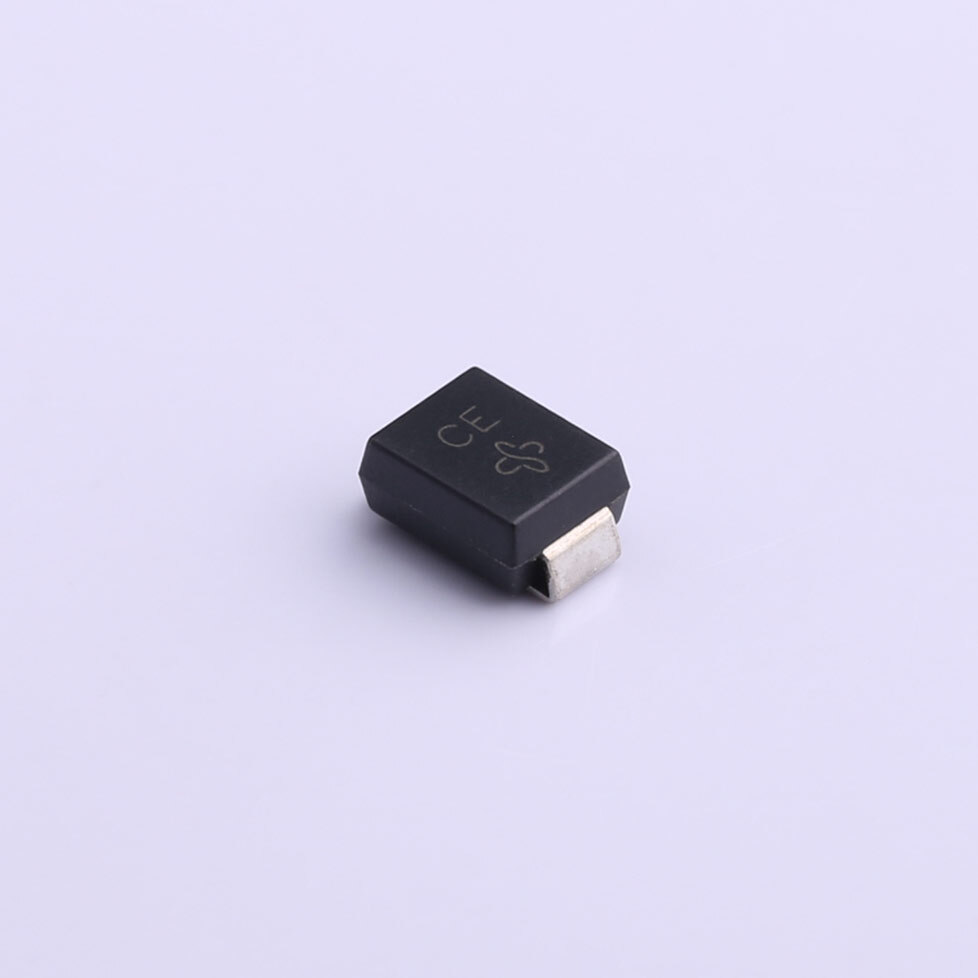

Same model may have multiple batches, images only for reference.
SMBJ26CA ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ26CA

Part No SMBJ26CA
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 28.9V 26V 42.1V 14.3A SMB(DO-214AA)
Datasheet
SMBJ26CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329929-SMBJ26CA
Series *
Package Tape & Reel (TR)
Product Status Active
Grade -
Package Tape & Reel (TR);Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 26V
Voltage - Breakdown (Min) 28.9V
Voltage - Clamping (Max) @ Ipp 42.1V
Current - Peak Pulse (10/1000µs) 14.25A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Current - Peak Pulse (10/1000µs) 14.3A
Supplier Device Package DO-214AA (SMB)
Operating Temperature -65°C ~ 150°C (TJ)
Bidirectional Channels 2
Power Line Protection Yes
Operating Temperature -55°C ~ 150°C
Supplier Device Package DO-214AA (SMBJ)
Current - Peak Pulse (10/1000µs) 14.9A
Package Strip
Package / Case DO-214AA (SMB)
Package Cut Tape (CT)
Ultra Librarian 3D Model Ultra Librarian SMBJ26CA CAD Model
