BSS84 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet

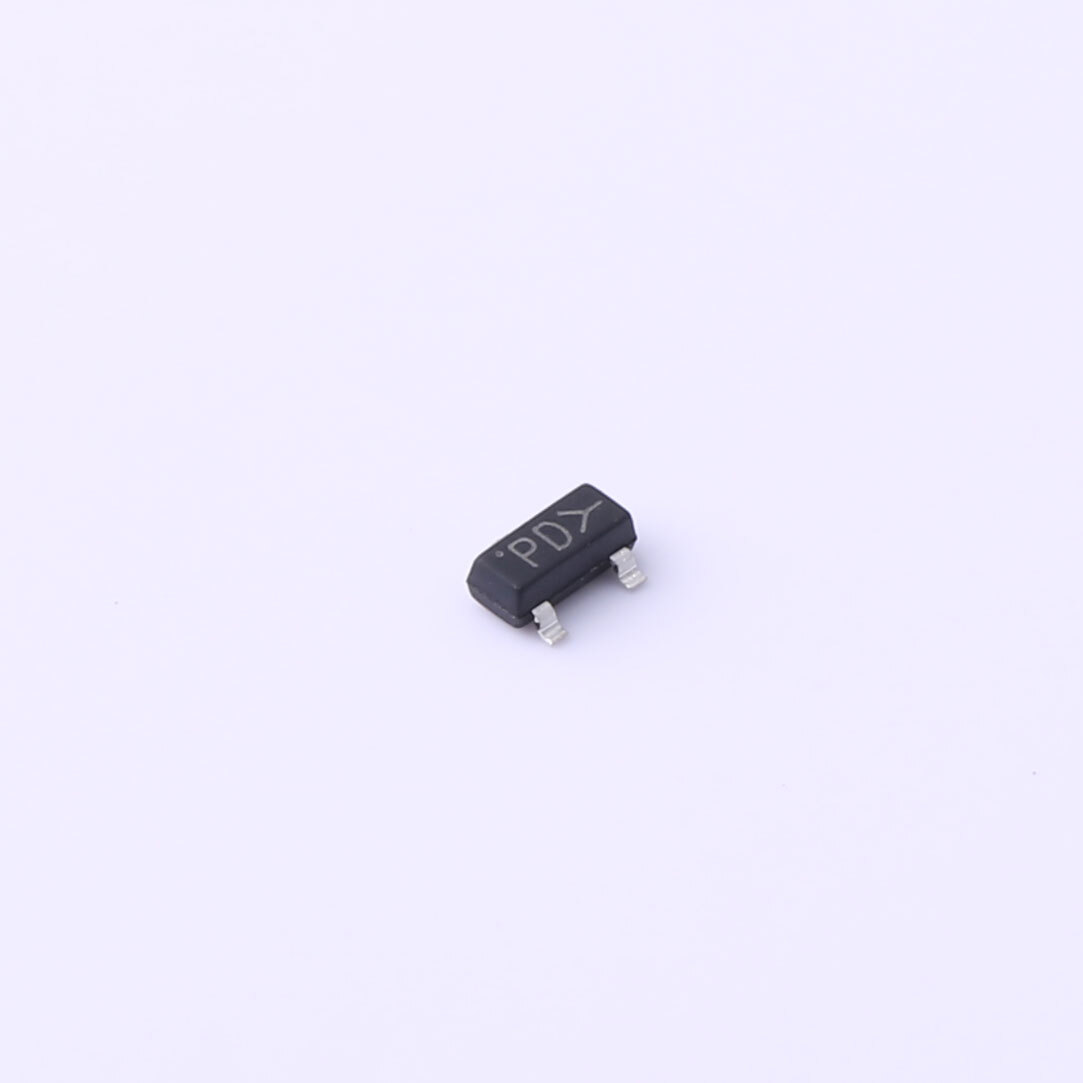

Same model may have multiple batches, images only for reference.

BSS84 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet

Same model may have multiple batches, images only for reference.

BSS84

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSS84
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	FETs - Single
Description	50V 130mA 10Ω@5V,100mA 200mW 1V@250uA 1 piece P-channel SOT-23
Datasheet	BSS84 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1330058-BSS84
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	50V
Current - Continuous Drain (Id) @ 25°C	130mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8 Ohm @ 150mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.3 nC @ 5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	73 pF @ 25 V
Power Dissipation (Max)	225mW (Ta)
Operating Temperature	-55°C ~ 155°C (TJ)
Grade	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
Package	Tape & Reel (TR)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	8Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.77 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	30 pF @ 5 V
Operating Temperature	-55°C ~ 150°C
Supplier Device Package	SOT-23-3
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	10 Ohm @ 100mA, 5V
Vgs(th) (Max) @ Id	2V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	45 pF @ 25 V
Power Dissipation (Max)	300mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Supplier Device Package	SOT-23
Ultra Librarian 3D Model	Ultra Librarian BSS84 CAD Model
