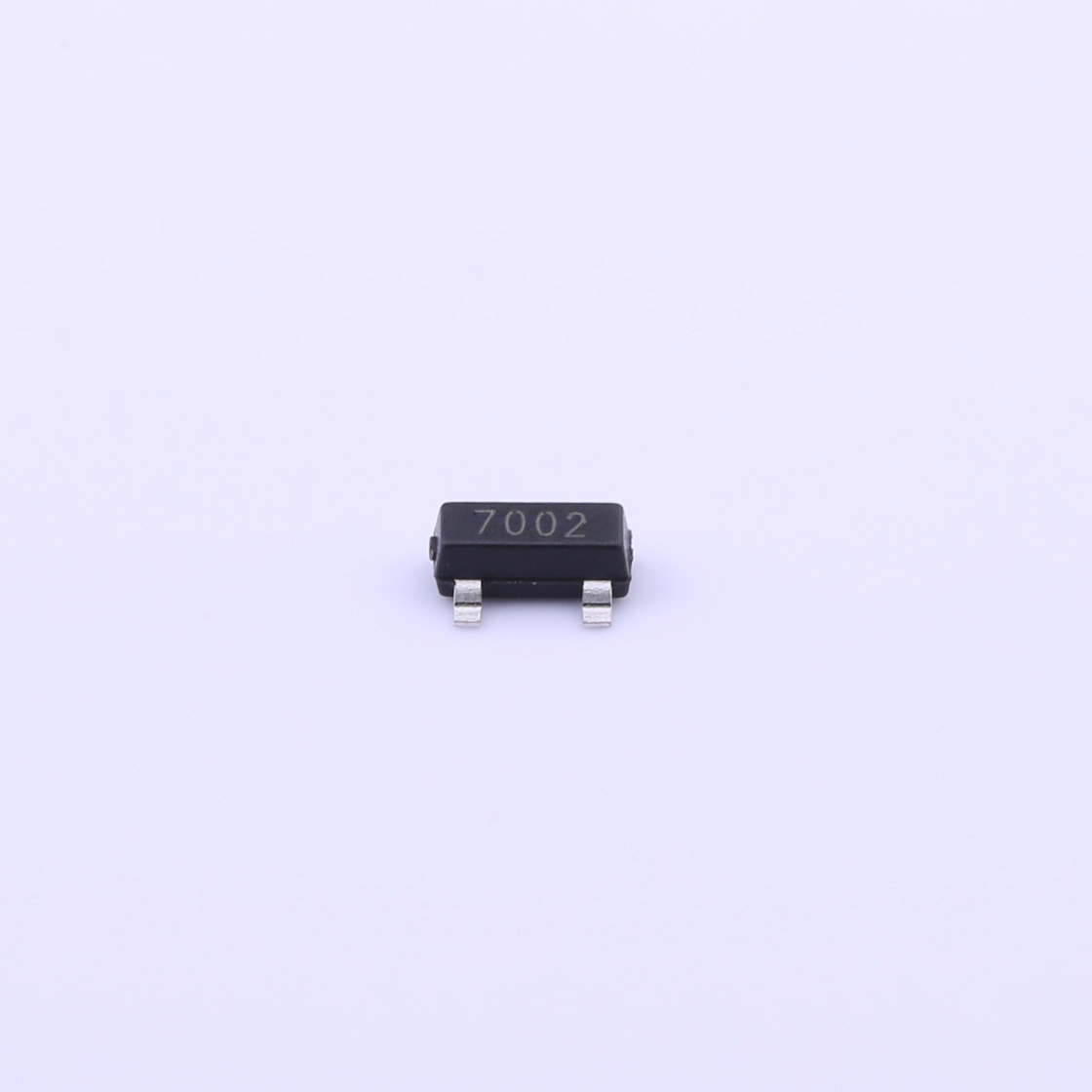

2N7002

Name: 2N7002
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1330067
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	2N7002
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	FETs - Single
Description	60V 115mA 7.5Ω@5V,50mA 225mW 2.5V@250uA 1 N-channel SOT-23
Datasheet	2N7002 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1330067-2N7002
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
Power Dissipation (Max)	200mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
Product Status	Obsolete
Current - Continuous Drain (Id) @ 25°C	200mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2nC @ 5V
Vgs (Max)	±18V
Input Capacitance (Ciss) (Max) @ Vds	43 pF @ 25 V
Power Dissipation (Max)	350mW (Tc)
Package	Cut Tape (CT)
Current - Continuous Drain (Id) @ 25°C	115mA
Power Dissipation (Max)	225mW
Operating Temperature	150°C (TJ)
Supplier Device Package	SOT-23
Vgs (Max)	20V
Power Dissipation (Max)	225mW (Ta)
Current - Continuous Drain (Id) @ 25°C	280mA (Ta)
Vgs (Max)	±30V
