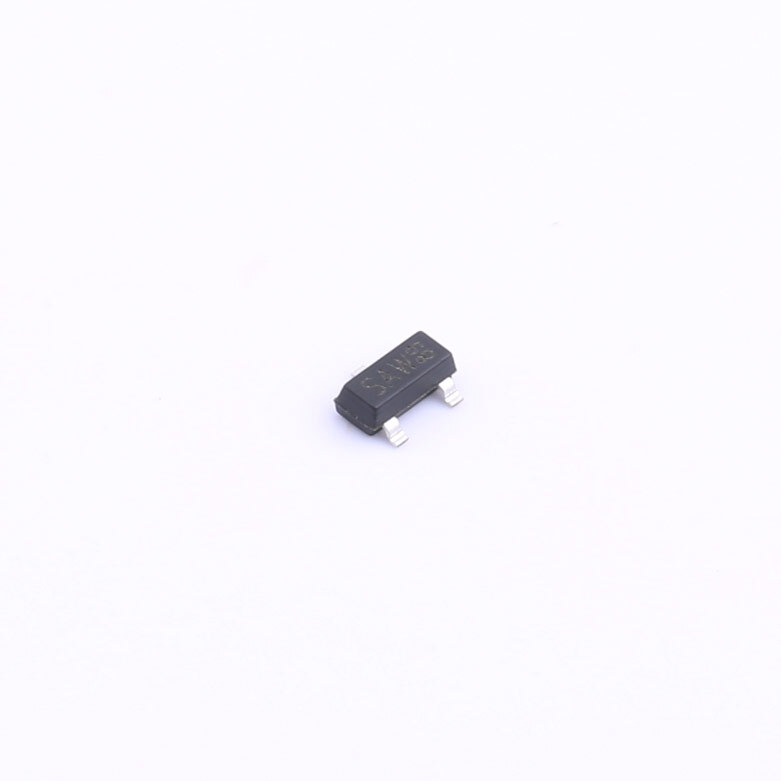

BSS123 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet

Same model may have multiple batches, images only for reference.

BSS123 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet

Same model may have multiple batches, images only for reference.

BSS123

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSS123
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	FETs - Single
Description	100V 150mA 6Ω@10V,120mA 250mW 2.8V@1mA 1 N-channel SOT-23
Datasheet	BSS123 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1330072-BSS123
Series	*
Package	Cut Tape (CT)
Product Status	Active
Grade	-
Package	Tape & Reel (TR);Cut Tape (CT)
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5 Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.8 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14 pF @ 50 V
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
Current - Continuous Drain (Id) @ 25°C	150mA
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6Ohm @ 120mA, 10V
Vgs(th) (Max) @ Id	2.8V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	40 pF @ 25 V
Power Dissipation (Max)	250mW (Ta)
Package	Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C	200mA
Gate Charge (Qg) (Max) @ Vgs	1.61 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	32 pF @ 50 V
Operating Temperature	-55°C ~ 150°C (TJ)
Package / Case	SOT-23-3
Current - Continuous Drain (Id) @ 25°C	190mA (Ta)
Rds On (Max) @ Id, Vgs	5Ohm @ 150mA, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.74 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	31.6 pF @ 50 V
Power Dissipation (Max)	300mW (Ta)
Ultra Librarian 3D Model	Ultra Librarian BSS123 CAD Model
