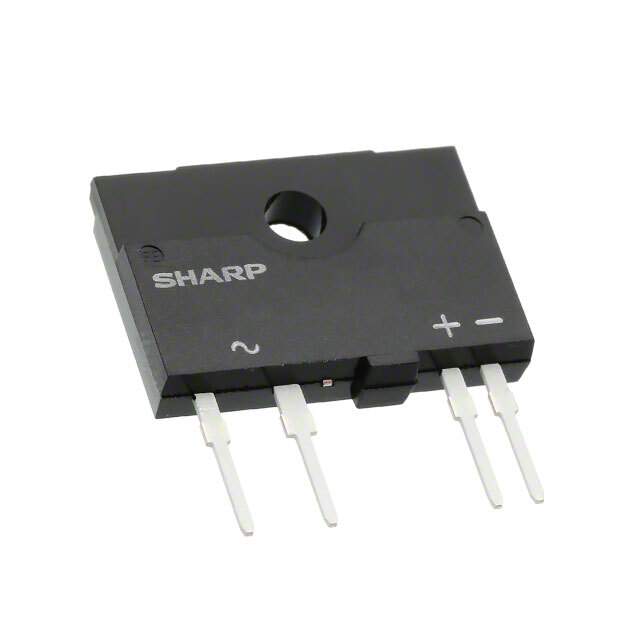

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Triac, Power
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 3000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 30V/μs
Current - LED Trigger (Ift) (Max) 8mA
Current - On State (It (RMS)) (Max) 8A
Current - Hold (Ih) 50mA
Turn On Time 10ms (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -25°C to 100°C
Mounting Through Hole
Case / Package 4-SIP
Approvals UL
Win Source Part Number 211147-S208T02F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S208T02F CAD Model

Description

The 211147-S208T02F is a triac power isolator from Sharp Microelectronics with a through-hole mounting type, 1 channel, and a 3000Vrms isolation voltage.

  • Mounting Type: Through-hole
  • Channels: 1
  • Isolation Voltage: 3000Vrms
  • Forward Voltage: 1.2V
  • Voltage Off-State: 600V
  • Current On-State (It (RMS)) (Max): 8A
  • Current Hold (Ih): 50mA
  • Zero Crossing Circuit: Yes
  • Static dV/dt (Min): 30V/μs
  • Current LED Trigger (Ift) (Max): 8mA
  • Turn On Time: 10ms (Max)
  • RoHS Compliant: Yes
  • Approvals: UL
  • Continuous Forward Current-Max: 50mA
  • Temperature Range: -25°C to 100°C
