Same model may have multiple batches, images only for reference.

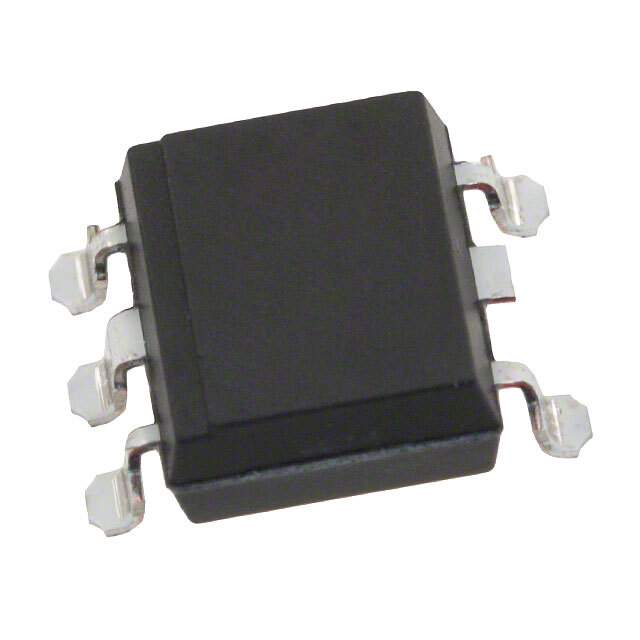

PC4SD21YXPDF Real Image
Same model may have multiple batches, images only for reference.

PC4SD21YXPDF

Part No PC4SD21YXPDF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SHARP/Socle Technology
Packaging Reel
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 800V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Maximum) 3mA
Current - On State (It (RMS)) (Maximum) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Maximum)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Temperature Range - Operating -30°C ~ 100°C
Mounting Style SMD
Manufacturer Package 6-SMD
Supplier Device Package 6-SMD
Approvals CSA, UR, VDE
Manufacturer Pack Quantity 1,000
MSL Level 2 (1 Year)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812217-PC4SD21YXPDF
Ultra Librarian 3D Model Ultra Librarian PC4SD21YXPDF CAD Model

Description

The SHARP/Socle Technology 812217-PC4SD21YXPDF is a triac output type voltage detector from SHARP/Socle Technology.

  • Voltage - Off State: 800V
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Mounting Style: SMD
  • Approvals: CSA, UR, VDE
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
