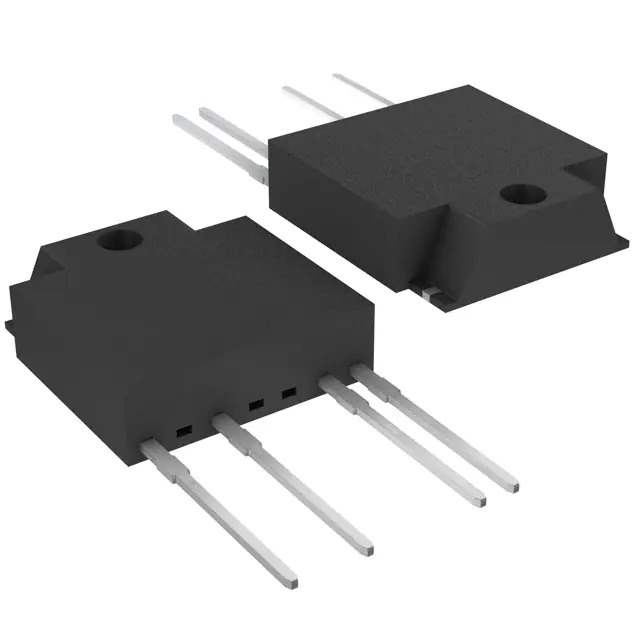

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sharp Microelectronics
Series S101
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 80 V ~ 120 V
Load Current 3 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Standard Package 200 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 662167-S101S06F
Ultra Librarian 3D Model Ultra Librarian S101S06F CAD Model

Description

The S101S06F is a solid-state relay designed for switching AC loads. It is part of the S101 series and has a circuit configuration of SPST-NO (1 Form A).

  • Load Current: 3A
  • Voltage Range: Between 80V and 120V
  • Voltage Input: 1.2VDC
  • Output Type: Zero-Cross
  • Package: 4-SIP
  • Mounting Type: Through-Hole
  • Status: Obsolete
  • Manufacturer: Sharp Microelectronics
  • Standard Package: 200 pieces
