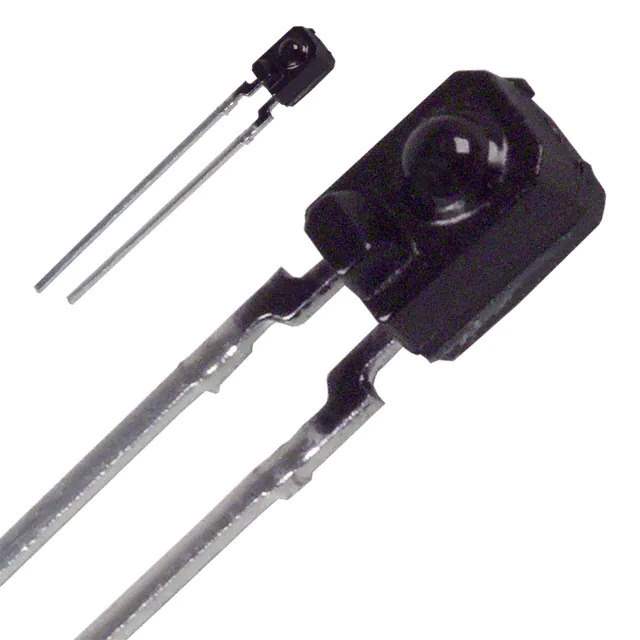

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 1 mA
Wavelength 860nm
Viewing Angle 70°
Power - Max 75 mW
Mounting Type Through Hole
Orientation Side View
Temperature Range - Operating -25°C ~ 85°C (TA)
Package / Case Radial
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 657654-PT481FE0000F
Ultra Librarian 3D Model Ultra Librarian PT481FE0000F CAD Model

Description

The Sharp Microelectronics PT481FE0000F is an obsolete optical sensor phototransistor.

  • Category: Sensors and Transducers, specifically Optical Sensors
  • Package Type: Tube
  • Standard Package: 50 pieces
  • Maximum Power: 75 mW
  • Voltage Breakdown: 35 V
  • Maximum Collector Current (Ic): 50 mA
  • Viewing Angle: 70 degrees
  • Wavelength: 860nm
  • Mounting Type: Through-Hole
  • Package/Case: Radial
  • Operating Temperature Range: From -25 degrees Celsius to 85 degrees Celsius
  • ECCN: EAR99
