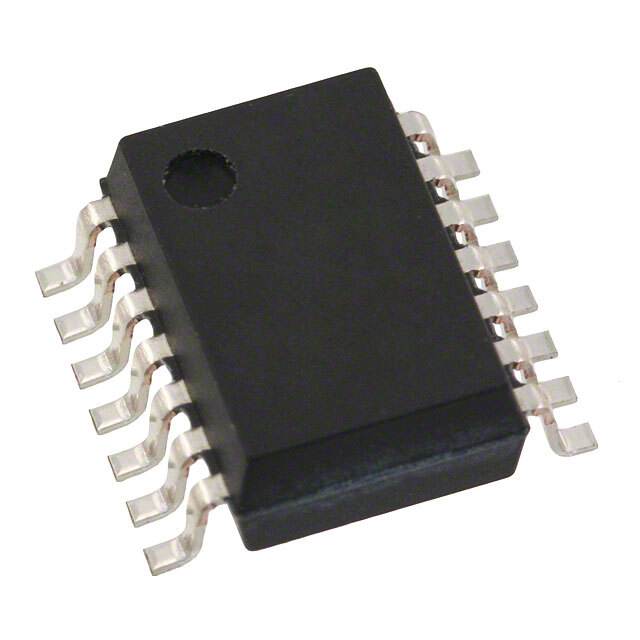

PC929J00000F Sharp Microelectronics PC929J00000F Real Image
Same model may have multiple batches, images only for reference.
PC929J00000F Sharp Microelectronics PC929J00000F Real Image
PC929J00000F Sharp Microelectronics PC929J00000F Real Image
Same model may have multiple batches, images only for reference.

PC929J00000F

Part No PC929J00000F
Manufacturer Sharp Microelectronics
Catalog Isolators - Gate Drivers
Description Optocoupler Drive 1-CH 30V 600V 14-Pin SMD Sleeve / OPTOISO 4KV GATE DRIVER 14SMT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 4000Vrms
Common Mode Transient Immunity (Min) 1.5kV/μs
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Rise and Fall Time 200ns, 200ns
Current - Peak Output 400mA
Forward Voltage 1.6V
Continuous forward current- Max 20mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -25°C to 80°C
Mounting SMD (SMT)
Case / Package 14-SMT
Approvals UR
Win Source Part Number 090473-PC929J00000F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PC929
Introduction Date July 28, 2005
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC929J00000F CAD Model

Description

The Sharp Microelectronics PC929J00000F is a high popularity electronic component.

  • Supply and Demand Status: balanced
  • Status: obsolete (EOL) product
  • Packaging: tube/rail
  • Isolation Voltage: 4000Vrms
  • Common Mode Transient Immunity: 1.5kV/μs
  • Maximum Pulse Width Distortion: 500ns
  • Rise and Fall Time: 200ns
  • Channels: single-channel product
  • Maximum Forward Current: 20mA
  • Peak Output Current: 400mA
  • Application: suitable for use in various electronic circuits, such as power supplies, motor control, and audio equipment.
