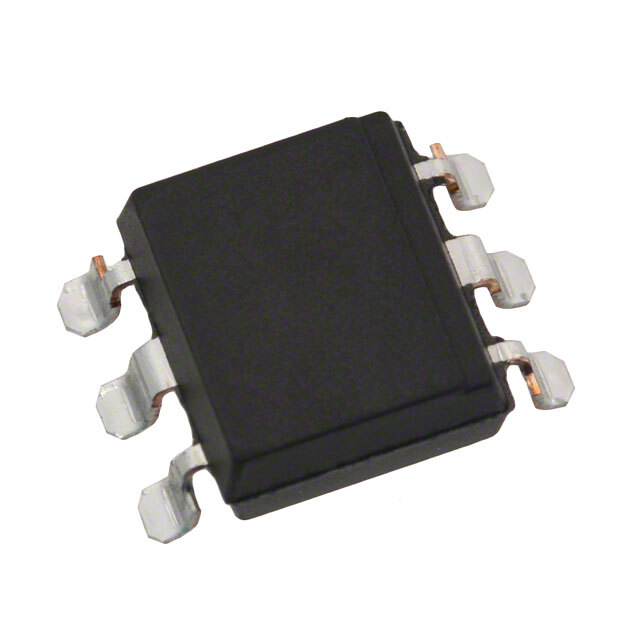

PC900V0NIPXF Sharp Microelectronics PC900V0NIPXF real image4466 PC900V0NIPXF label picture PC900V0NIPXF real image
Same model may have multiple batches, images only for reference.
PC900V0NIPXF Sharp Microelectronics PC900V0NIPXF real image4466 PC900V0NIPXF label picture PC900V0NIPXF real image
PC900V0NIPXF Sharp Microelectronics PC900V0NIPXF real image4466 PC900V0NIPXF label picture PC900V0NIPXF real image
Same model may have multiple batches, images only for reference.

PC900V0NIPXF

Part No PC900V0NIPXF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLLECTOR 6SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Propagation Delay tpLH / tpHL (Max) 6μs, 3μs
Rise and Fall Time 100ns, 50ns
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Supply Voltage - Operating 3 V to 15 V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 026436-PC900V0NIPXF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PC900V
Introduction Date July 28, 2005
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PC900V0NIPXF CAD Model

Description

The PC900V0NIPXF is an optoisolator component manufactured by Sharp Microelectronics.

  • Mounting Type: SMD (SMT)
  • Output: single channel
  • Forward Voltage: 1.1V
  • Common Mode Transient Immunity (Min): -
  • Propagation Delay tpLH / tpHL (Max): 6μs, 3μs
  • Isolation Voltage: 5000Vrms
