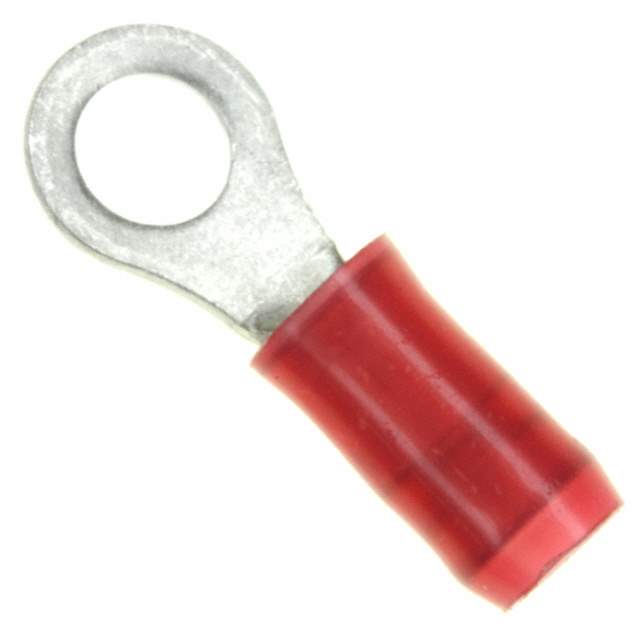

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 6 Weeks
Features Ring Terminal Connector 8 Stud Circular 16-22 AWG Crimp
Manufacturer TE Connectivity
Series PIDG
Package Bulk
Mounting Free Hanging (In-Line)
Family Name 3205
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -F92535-000-SI, A27239, -320554-SI, 2266-320554, 320554-ND, -F92535-000-SI-ND
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906544-320554
Ultra Librarian 3D Model Ultra Librarian 320554 CAD Model

Description

The TE Connectivity PIDG Ring Terminal Connector is a high-quality, durable connector designed for use with 16-22 AWG wire manufactured by TE Connectivity.

  • Design: Circular design
  • Stud Holes: 8
  • Termination: Crimped onto the wire
  • Packaging: Bulk
  • Application: Free hanging (in-line) applications
  • Family: 3205 family of connectors
  • Category: Connectors
  • ECCN: EAR99 compliant
  • Popularity: High popularity in the market
  • Estimated Production Lead Time: 6 weeks
  • REACH Status: REACH status vendor undefined
  • HTSUS code: 8536.90.4000
