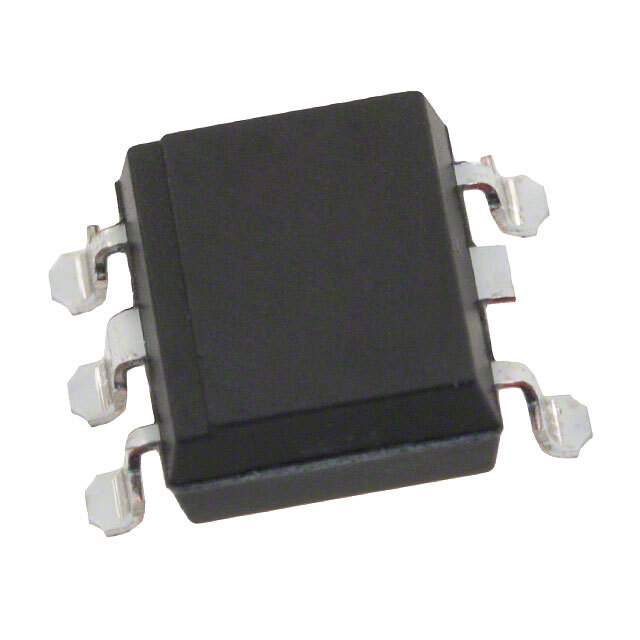

PC3SD12NXZAF Real Image
Same model may have multiple batches, images only for reference.

PC3SD12NXZAF

Part No PC3SD12NXZAF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD
Datasheet
PC3SD12NXZAF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals CSA, UR
Win Source Part Number 1086638-PC3SD12NXZAF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC3SD12NXZAF CAD Model

Description

The Sharp Microelectronics 1086638-PC3SD12NXZAF is a surface mount triac output type isolator with a forward voltage of 1.2V and an off-state voltage of 600V.

  • Manufacturer: Sharp Microelectronics
  • Forward Voltage: 1.2V
  • Off-State Voltage: 600V
  • Maximum Current: 100mA
  • Isolation Voltage: 5000Vrms
  • Current Hold: 3.5mA
  • Turn-On Time: 50μs (Max)
  • Operating Temperature: -30°C to 100°C
  • Approvals: CSA and UR
  • Category: Isolators
  • Continuous Forward Current: 50mA
