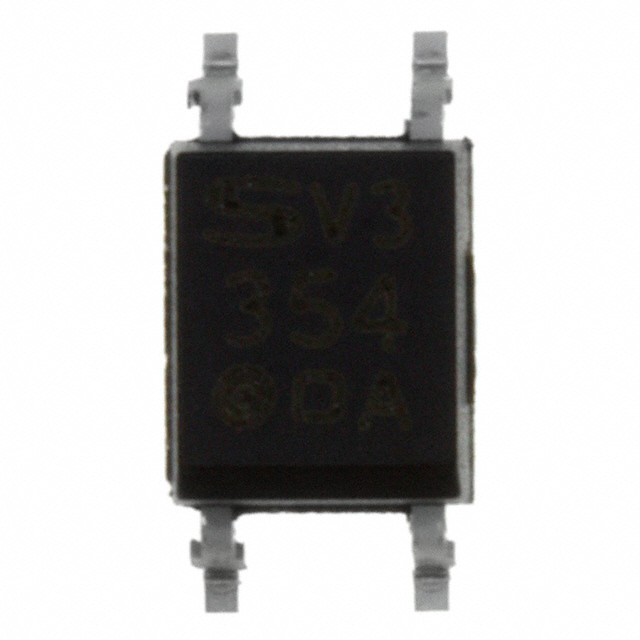

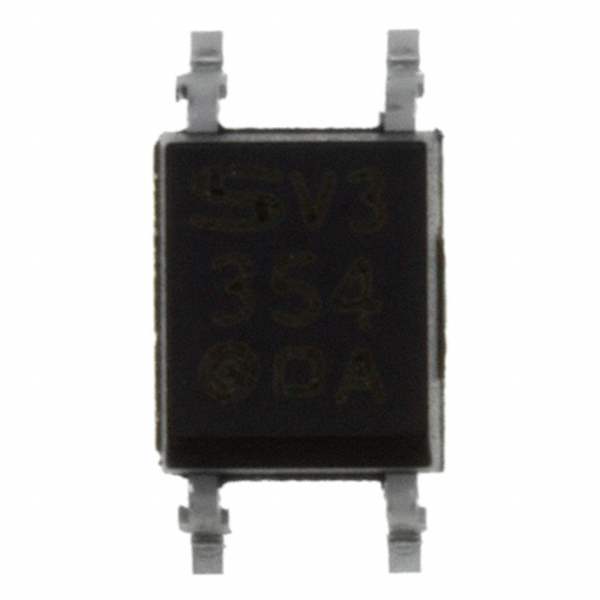

PC354N1TJ00F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC354N1TJ00F

Part No PC354N1TJ00F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4-SMD
Datasheet
PC354N1TJ00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 1mA
Maximum DC Current Transfer Ratio 150% @ 1mA
Rise and Fall Time 4μs, 3μs
Input Type AC, DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 132518-PC354N1TJ00F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PC354N1TJ00F CAD Model

Description

The Sharp Microelectronics PC354N1TJ00F is an SMD (SMT) mounted transistor output isolator.

  • Isolation Voltage: 3750Vrms
  • Maximum Output Voltage: 80V
  • Minimum DC Current Transfer Ratio: 50% @ 1mA
  • Maximum DC Current Transfer Ratio: 150% @ 1mA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Category: Isolators
  • Status: obsolete (EOL)
  • Operating Temperature Range: -30°C to 100°C
  • Package: 4-Mini-Flat
  • Supply and Demand Status: limited
